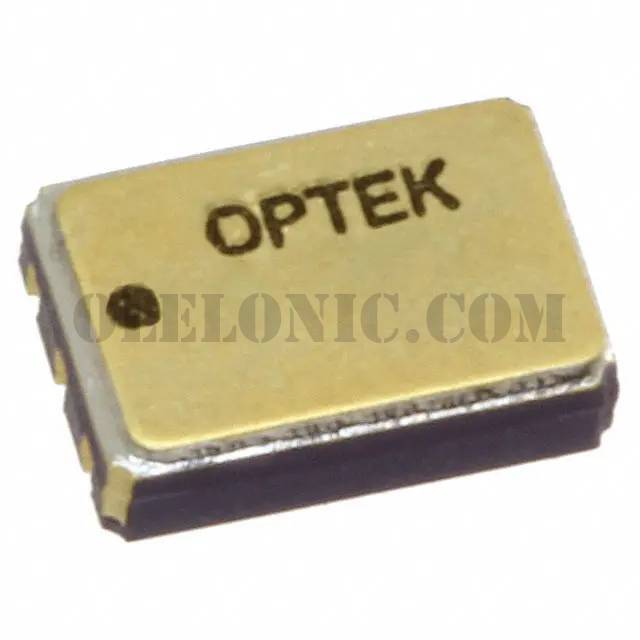

2N4854U

Part Number2N4854U

ManufacturerTT Electronics/Optek Technology

DescriptionTRANS NPN/PNP 40V 0.6A 6CLCC

Datasheet2N4854U(TX,TXV)

Package / Case6-CLCC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array NPN, PNP 40V 600mA 600mW Surface Mount 6-CLCC

To learn about the specification of 2N4854U, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N4854U with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N4854U.
We are offering 2N4854U for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2N4854U - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	2N4854U(TX,TXV)
Standard Package	1
Manufacturer	TT Electronics/Optek Technology
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	NPN, PNP
Current - Collector (Ic) (Max)	600mA
Voltage - Collector Emitter Breakdown (Max)	40V
Vce Saturation (Max) @ Ib, Ic	400mV @ 15mA, 150mA
Current - Collector Cutoff (Max)	10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 10V
Power - Max	600mW
Frequency - Transition	-
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-CLCC
Supplier Device Package	6-CLCC
