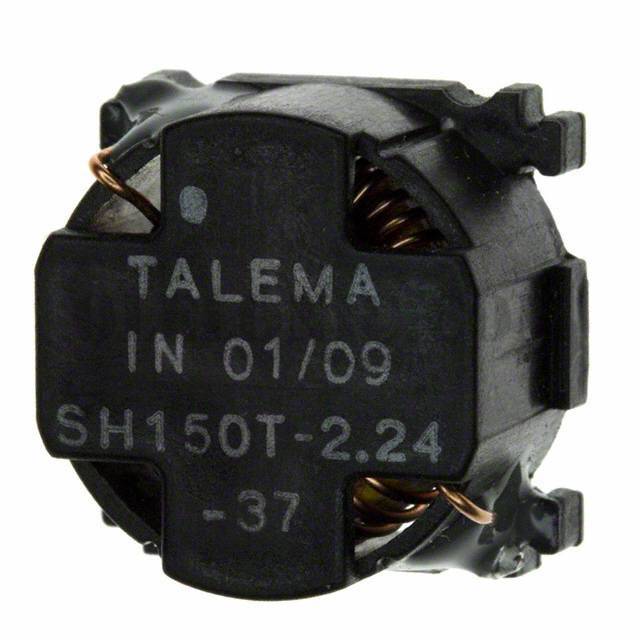

SH150T-2.24-37

SH150T-2.24-37

Part NumberSH150T-2.24-37

ManufacturerAmgis, LLC

DescriptionFIXED IND 37UH 2.24A 100 MOHM TH

DatasheetSH150 Series

Package / CaseRadial, Horizontal - Corner Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description37µH Unshielded Toroidal Inductor 2.24A 100mOhm Radial, Horizontal - Corner Terminals

To learn about the specification of SH150T-2.24-37, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SH150T-2.24-37 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SH150T-2.24-37.
We are offering SH150T-2.24-37 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SH150T-2.24-37 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	SH150 Series
Standard Package	200
Manufacturer	Amgis, LLC
Series	SH150
Packaging	Tray
Part Status	Active
Type	Toroidal
Material - Core	Iron Powder
Inductance	37µH
Tolerance	±20%
Current Rating (Amps)	2.24A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	100mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	10kHz
Mounting Type	Through Hole
Package / Case	Radial, Horizontal - Corner Terminals
Supplier Device Package	-
Size / Dimension	0.614" L x 0.591" W (15.60mm x 15.00mm)
Height - Seated (Max)	0.358" (9.10mm)
