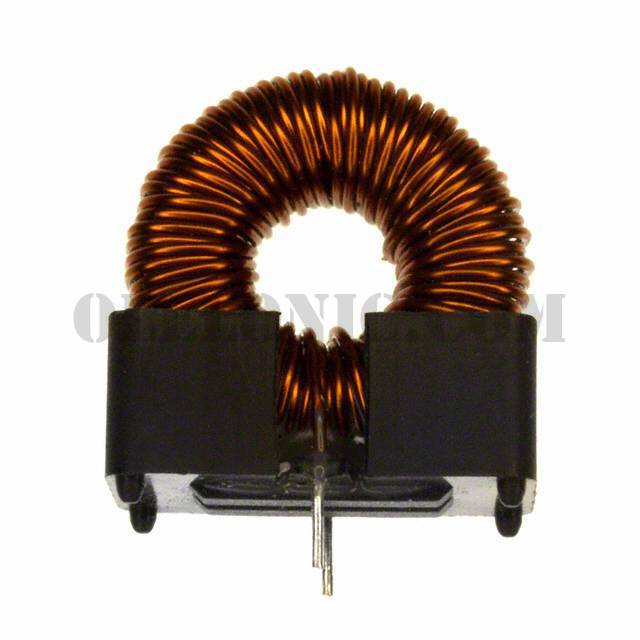

SH150C-3.00-110

SH150C-3.00-110

Part NumberSH150C-3.00-110

ManufacturerAmgis, LLC

DescriptionFIXED IND 110UH 3A 90 MOHM TH

DatasheetSH150 Series

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description110µH Unshielded Toroidal Inductor 3A 90mOhm Radial, Vertical (Open)

To learn about the specification of SH150C-3.00-110, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SH150C-3.00-110 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SH150C-3.00-110.
We are offering SH150C-3.00-110 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SH150C-3.00-110 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	SH150 Series
Standard Package	100
Manufacturer	Amgis, LLC
Series	SH150
Packaging	Tray
Part Status	Active
Type	Toroidal
Material - Core	Iron Powder
Inductance	110µH
Tolerance	±20%
Current Rating (Amps)	3A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	90mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	10kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical (Open)
Supplier Device Package	-
Size / Dimension	0.949" L x 0.598" W (24.10mm x 15.20mm)
Height - Seated (Max)	1.059" (26.90mm)
