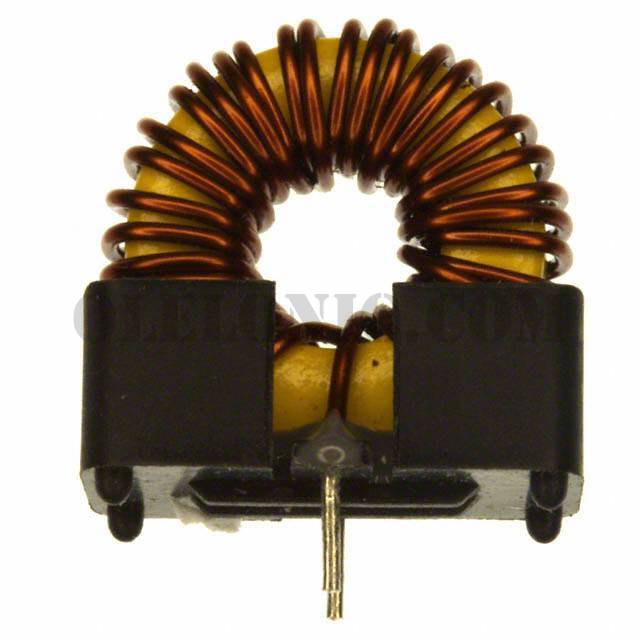

SH150C-4.50-19


SH150C-4.50-19

Part NumberSH150C-4.50-19

Manufacturer

Description

Datasheet

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

SH150C-4.50-19 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package200
ManufacturerAmgis, LLC
SeriesSH150
PackagingTray
Part StatusActive
TypeToroidal
Material - CoreIron Powder
Inductance19µH
Tolerance±20%
Current Rating (Amps)4.5A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)20mOhm
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test10kHz
Mounting TypeThrough Hole
Package / CaseRadial, Vertical (Open)
Supplier Device Package-
Size / Dimension0.827" L x 0.449" W (21.00mm x 11.40mm)
Height - Seated (Max)0.937" (23.80mm)

SH150C-4.50-19 - Related Products

More >>
SH150C-3.00-77 Amgis, LLC, 77µH Unshielded Toroidal Inductor 3A 80mOhm Radial, Vertical (Open), SH150 View
SH150S-0.83-248 Amgis, LLC, 248µH Unshielded Toroidal Inductor 830mA 600mOhm Nonstandard, SH150 View
SH150T-2.24-37 Amgis, LLC, 37µH Unshielded Toroidal Inductor 2.24A 100mOhm Radial, Horizontal - Corner Terminals, SH150 View
SH150S-1.54-77 Amgis, LLC, 77µH Unshielded Toroidal Inductor 1.54A 200mOhm Nonstandard, SH150 View
SH150S-1.87-53 Amgis, LLC, 53µH Unshielded Toroidal Inductor 1.87A 130mOhm Nonstandard, SH150 View
SH150S-1.87-53 Amgis, LLC, 53µH Unshielded Toroidal Inductor 1.87A 130mOhm Nonstandard, SH150 View
SH150C-4.50-19 Amgis, LLC, 19µH Unshielded Toroidal Inductor 4.5A 20mOhm Radial, Vertical (Open), SH150 View
SH150S-3.00-77 Amgis, LLC, 77µH Unshielded Toroidal Inductor 3A 80mOhm Nonstandard, SH150 View
SH150T-0.38-118 Amgis, LLC, 118µH Unshielded Toroidal Inductor 380mA 1.2Ohm Radial, Horizontal - Corner Terminals, SH150 View
SH150S-3.00-77 Amgis, LLC, 77µH Unshielded Toroidal Inductor 3A 80mOhm Nonstandard, SH150 View
SH150S-3.00-25 Amgis, LLC, 25µH Unshielded Toroidal Inductor 3A 40mOhm Nonstandard, SH150 View
SH150S-2.74-24 Amgis, LLC, 24µH Unshielded Toroidal Inductor 2.74A 70mOhm Nonstandard, SH150 View
