RN116-1.5-02-10M
RN116-1.5-02-10M

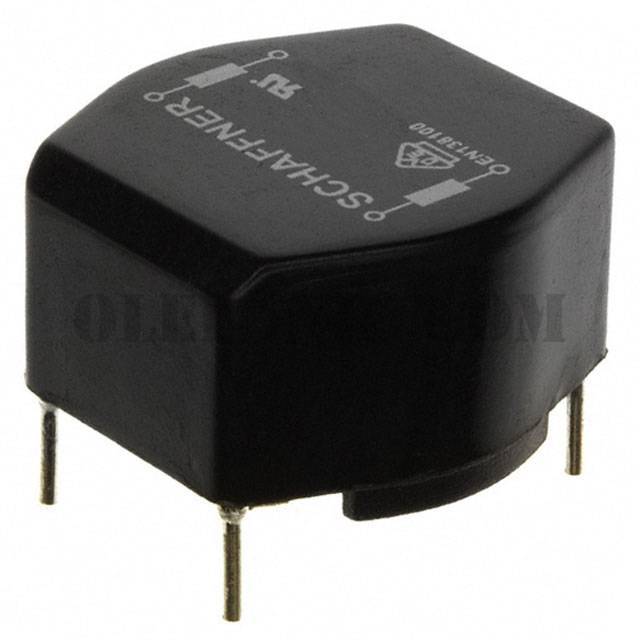

Part Number RN116-1.5-02-10M Description CMC 10MH 1.5A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 10mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 148mOhm (Typ)
To learn about the specification of RN116-1.5-02-10M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RN116-1.5-02-10M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RN116-1.5-02-10M.
We are offering RN116-1.5-02-10M for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RN116-1.5-02-10M - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RN Series Datasheet Standard Package 500 Manufacturer Schaffner EMC Inc. Series RN Packaging Tray Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 10mH @ 10kHz Current Rating (Max) 1.5A DC Resistance (DCR) (Max) 148mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 300V Operating Temperature -40°C ~ 100°C Ratings - Approvals ENEC, UR, VDE Features - Mounting Type Through Hole Size / Dimension 0.886" L x 0.846" W (22.50mm x 21.50mm) Height (Max) 0.531" (13.50mm) Package / Case Horizontal, 4 PC Pin
