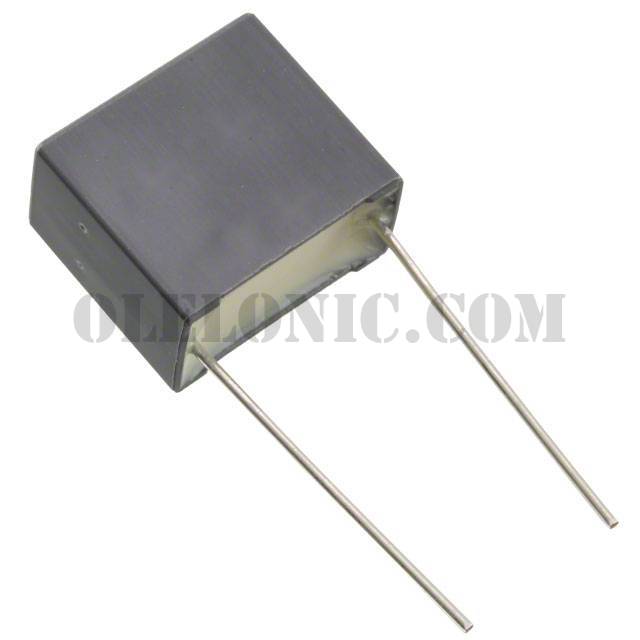

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	500
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	0.033µF
Tolerance	±5%
Voltage Rating - AC	650V
Voltage Rating - DC	1600V (1.6kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.335" W (18.00mm x 8.50mm)
Height - Seated (Max)	0.575" (14.60mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R76PN3100SE30J	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76PD2100SE30J	KEMET, 10000pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R76	View
R76TW34704030J	KEMET, 0.47µF Film Capacitor 650V 1500V (1.5kV) Polypropylene (PP), Metallized Radial, R76	View
R76QI21004030J	KEMET, 10000pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76TN24704040J	KEMET, 0.047µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76PF2100DQ30J	KEMET, 10000pF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76QR3100SE40J	KEMET, 0.1µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76IF2470SE30J	KEMET, 0.047µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, R76	View
R76MI2470SE30K	KEMET, 0.047µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76TI22204040J	KEMET, 0.022µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76QN24704030J	KEMET, 0.047µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76QF1220SE00J	KEMET, 2200pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View

R76TI23304040J

Part NumberR76TI23304040J
