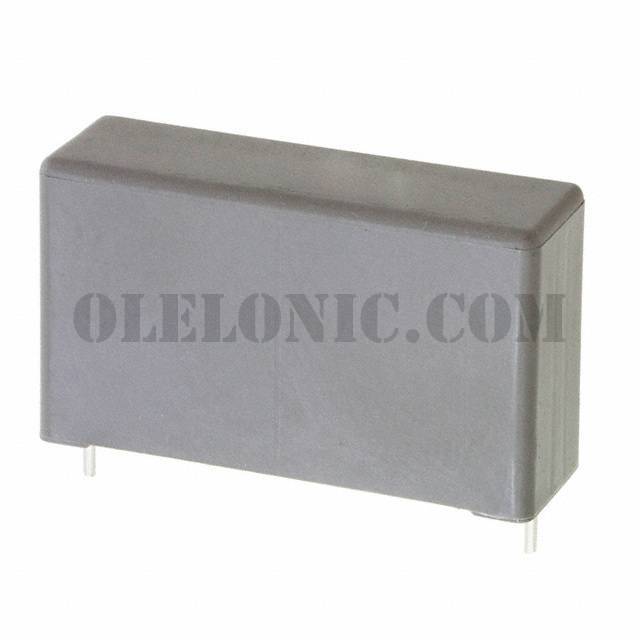

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	360
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	0.1µF
Tolerance	±10%
Voltage Rating - AC	700V
Voltage Rating - DC	2000V (2kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.634" L x 0.512" W (41.50mm x 13.00mm)
Height - Seated (Max)	0.945" (24.00mm)
Termination	PC Pins
Lead Spacing	1.476" (37.50mm)
Applications	High Frequency, Switching; High Pulse, DV/DT
Ratings	-
Features	-

R76QI23305040J	KEMET, 0.033µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76PN33304030J	KEMET, 0.33µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76MD2100SE40J	KEMET, 10000pF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76TI22204040J	KEMET, 0.022µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76PD1220SE00K	KEMET, 2200pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R76	View
R76QF13304030J	KEMET, 3300pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76II3220SE30K	KEMET, 0.22µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, R76	View
R76MN34704030J	KEMET, 0.47µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76QI22204040J	KEMET, 0.022µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76PN3100SE30J	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76PI31004030J	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76TI21004040J	KEMET, 10000pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View

R76UW3100SE30K

Part NumberR76UW3100SE30K
