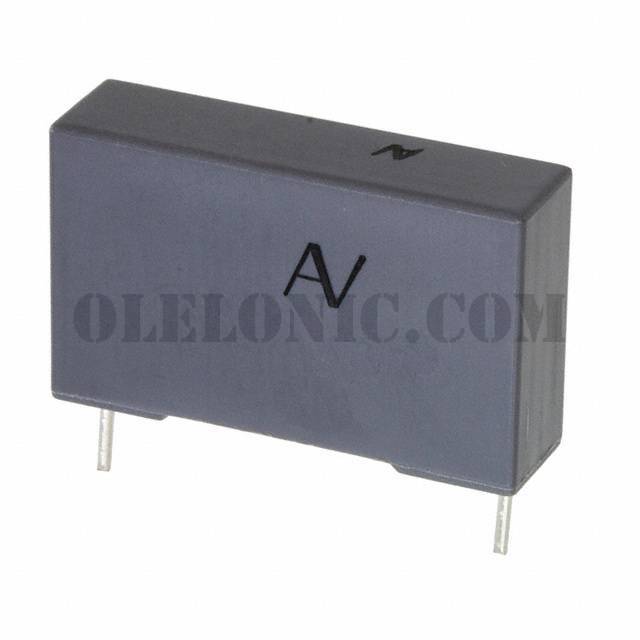

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	700
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	0.22µF
Tolerance	±10%
Voltage Rating - AC	250V
Voltage Rating - DC	400V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.043" L x 0.276" W (26.50mm x 7.00mm)
Height - Seated (Max)	0.630" (16.00mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R76QF11504000K	KEMET, 1500pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76PF21004030J	KEMET, 10000pF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76QW3220SE30K	KEMET, 0.22µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76PD1220SE00J	KEMET, 2200pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R76	View
R76PR41004030J	KEMET, 1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76UR26804030J	KEMET, 0.068µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76UI12204030J	KEMET, 2200pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76UN1220SE00J	KEMET, 2200pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76IN4100SE30J	KEMET, 1µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, R76	View
R76UI14704040J	KEMET, 4700pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76TI21004040J	KEMET, 10000pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76QF14704030J	KEMET, 4700pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View

R76MN3220SE30K

Part NumberR76MN3220SE30K
