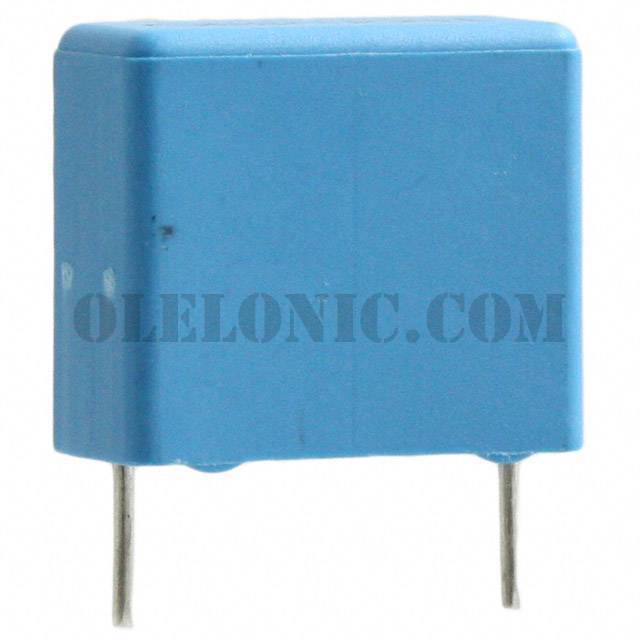

Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	300
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	4700pF
Tolerance	±5%
Voltage Rating - AC	1000V (1kV)
Voltage Rating - DC	3000V (3kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.374" W (18.00mm x 9.50mm)
Height - Seated (Max)	0.689" (17.50mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450KF7220JR06L2	KEMET, 2.2µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450HK4470JR05	KEMET, 4700pF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450TB5100JB16R17	KEMET, 10000pF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MF6220JR06L2	KEMET, 0.22µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MA5100JR05	KEMET, 10000pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450XD5220JD20R06L2	KEMET, 0.022µF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MR7220JR06L2	KEMET, 2.2µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MB6100JR06	KEMET, 0.1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450XD5100JD15R06L2	KEMET, 10000pF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB5470JR17	KEMET, 0.047µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB5470JR06	KEMET, 0.047µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB6100JR06	KEMET, 0.1µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View

PHE450XB4470JB14R17

Part NumberPHE450XB4470JB14R17
