Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	600
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	0.1µF
Tolerance	±5%
Voltage Rating - AC	250V
Voltage Rating - DC	400V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.256" W (18.00mm x 6.50mm)
Height - Seated (Max)	0.492" (12.50mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450MF7100JR06L2	KEMET, 1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PF6470JF13R06L2	KEMET, 0.47µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450XB4220JB10R17	KEMET, 2200pF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RD6220JR06L2	KEMET, 0.22µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450TD4470JR06L2	KEMET, 4700pF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KD6470JR06L2	KEMET, 0.47µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SB4560JR06	KEMET, 5600pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KF7220JR06L2	KEMET, 2.2µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450HK3680JR17	KEMET, 680pF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450XD5220JD20R06L2	KEMET, 0.022µF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MD6220JR06L2	KEMET, 0.22µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RD6150JR06L2	KEMET, 0.15µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View

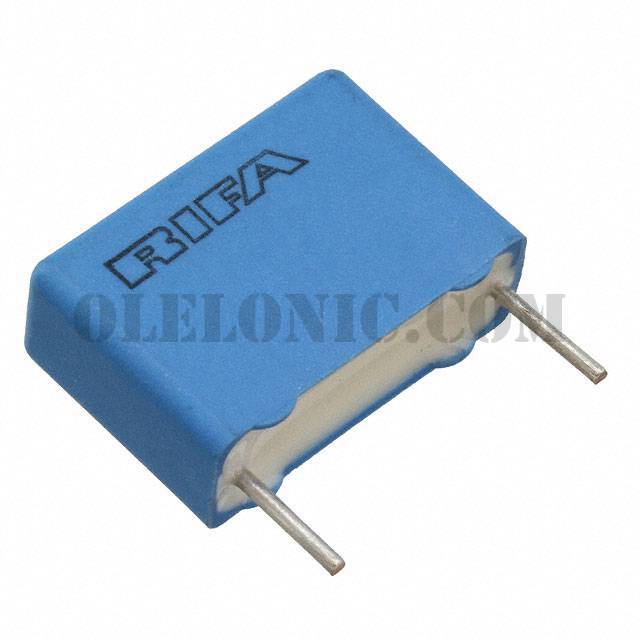

PHE450KB6100JR17

Part NumberPHE450KB6100JR17
