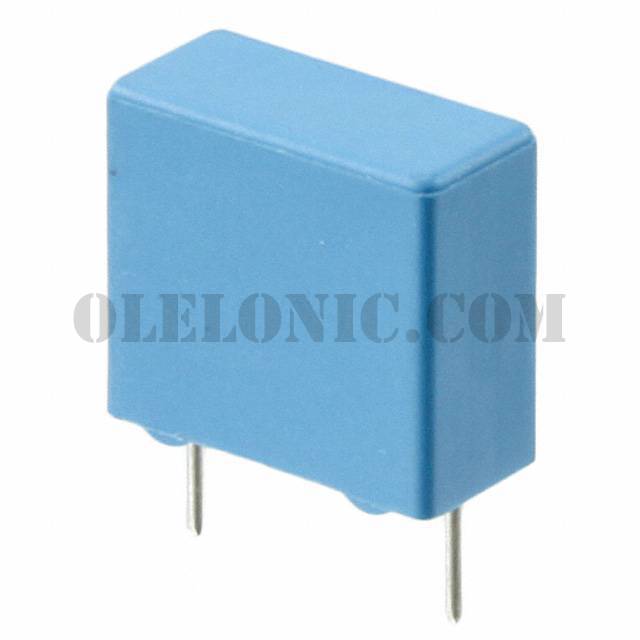

Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	600
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	0.1µF
Tolerance	±5%
Voltage Rating - AC	180V
Voltage Rating - DC	250V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.512" L x 0.236" W (13.00mm x 6.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Termination	PC Pins
Lead Spacing	0.394" (10.00mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450XD5100JD15R06L2	KEMET, 10000pF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PD5470JR06L2	KEMET, 0.047µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RD6220JR06L2	KEMET, 0.22µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450RD6150JR06L2	KEMET, 0.15µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KD6470JR06L2	KEMET, 0.47µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PK4220JR05	KEMET, 2200pF Film Capacitor 375V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450SD6100JR06L2	KEMET, 0.1µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MD6220JR06L2	KEMET, 0.22µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PB5100JR06	KEMET, 10000pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MR7270JR06L2	KEMET, 2.7µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MA5100JR05	KEMET, 10000pF Film Capacitor 300V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB5470JR06	KEMET, 0.047µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View

PHE450HA6100JR05

Part NumberPHE450HA6100JR05
