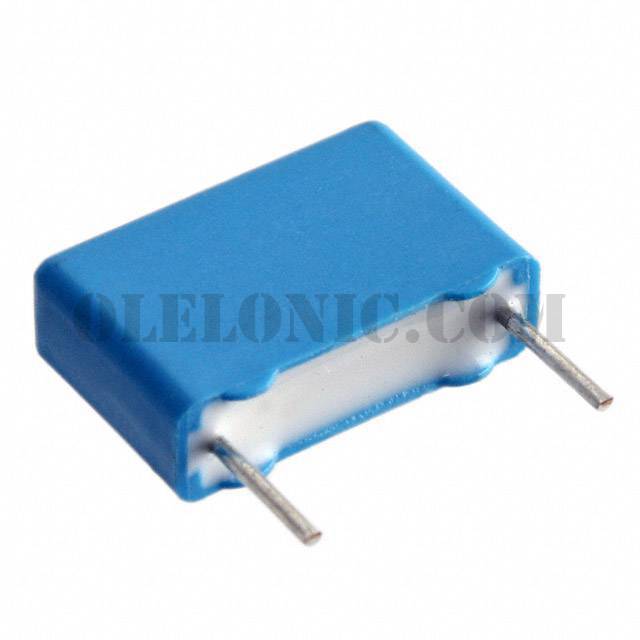

Categories	Capacitors / Film Capacitors
Datasheet	PHE450 Series
Standard Package	1000
Manufacturer	KEMET
Series	PHE450
Packaging	Bulk
Part Status	Active
Capacitance	10000pF
Tolerance	±5%
Voltage Rating - AC	300V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.512" L x 0.157" W (13.00mm x 4.00mm)
Height - Seated (Max)	0.354" (9.00mm)
Termination	PC Pins
Lead Spacing	0.394" (10.00mm)
Applications	High Frequency, Switching
Ratings	-
Features	-

PHE450SB4560JR06	KEMET, 5600pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PR7100JR02R06L2	KEMET, 1µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KB5330JR17	KEMET, 0.033µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MD6470JR06L2	KEMET, 0.47µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MD5560JR06L2	KEMET, 0.056µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PA5180JR05	KEMET, 0.018µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450PK4220JR05	KEMET, 2200pF Film Capacitor 375V 1000V (1kV) Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MF6680JR06L2	KEMET, 0.68µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450MD6330JR06L2	KEMET, 0.33µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KF7100JR06L2	KEMET, 1µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450KF6470JR06L2	KEMET, 0.47µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, PHE450	View
PHE450TB5100JB16R17	KEMET, 10000pF Film Capacitor 900V 2500V (2.5kV) Polypropylene (PP), Metallized Radial, PHE450	View

PHE450MA5100JR05

Part NumberPHE450MA5100JR05
