Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF

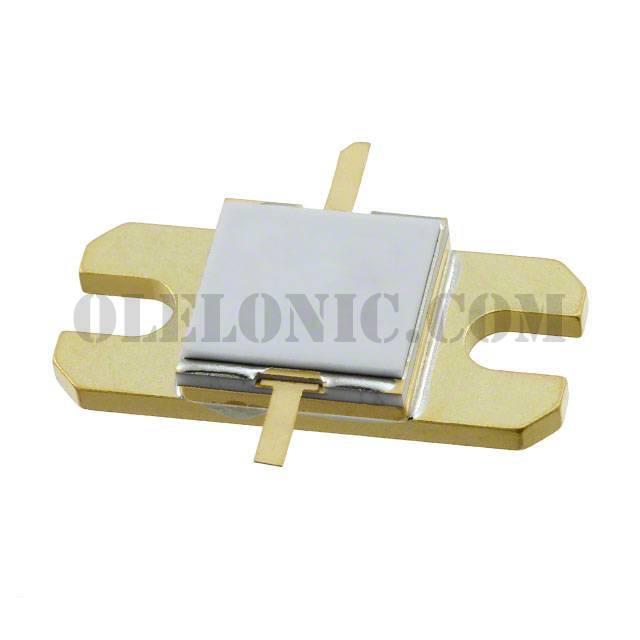

Datasheet	PH2729-25M
Standard Package	20
Manufacturer	M/A-Com Technology Solutions
Series	-
Packaging	Tray
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	60V
Frequency - Transition	-
Noise Figure (dB Typ @ f)	-
Gain	9.2dB
Power - Max	70W
DC Current Gain (hFE) (Min) @ Ic, Vce	-
Current - Collector (Ic) (Max)	4A
Operating Temperature	200°C (TJ)
Mounting Type	Chassis Mount
Package / Case	-
Supplier Device Package	-
