2N5770

2N5770

Part Number2N5770

ManufacturerCentral Semiconductor Corp

DescriptionRF TRANS NPN 15V 900MHZ TO92

Datasheet2N5770

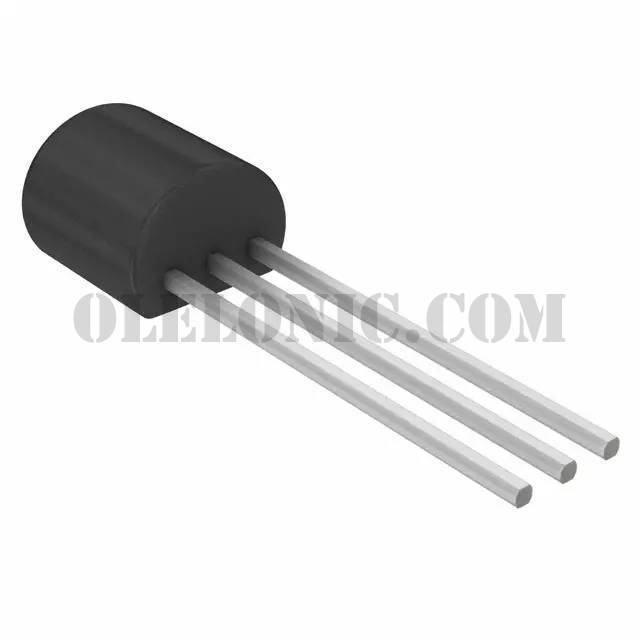

Package / CaseTO-226-3, TO-92-3 (TO-226AA)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionRF Transistor NPN 15V 50mA 900MHz 625mW Through Hole TO-92

To learn about the specification of 2N5770, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N5770 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N5770.
We are offering 2N5770 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2N5770 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	2N5770
Standard Package	2500
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	15V
Frequency - Transition	900MHz
Noise Figure (dB Typ @ f)	6dB @ 60MHz
Gain	-
Power - Max	625mW
DC Current Gain (hFE) (Min) @ Ic, Vce	50 @ 8mA, 1V
Current - Collector (Ic) (Max)	50mA
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package	TO-92
