Home/Product Catalog/Filters / Common Mode Chokes/  PFC2225BNP-402

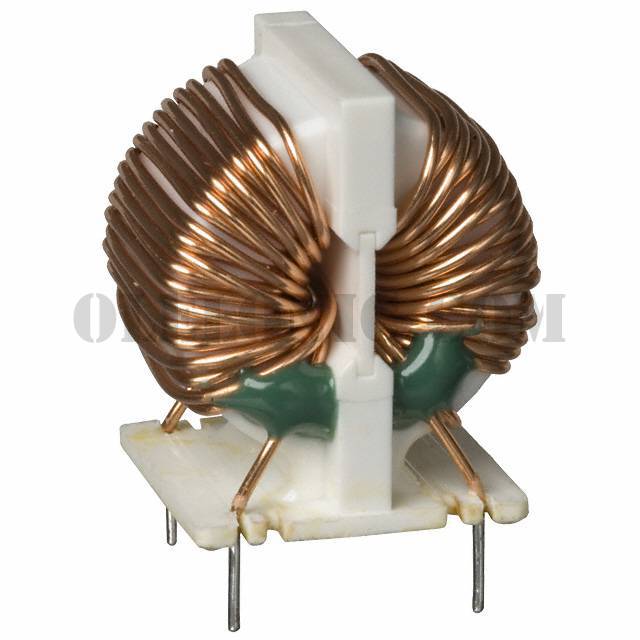

PFC2225BNP-402


PFC2225BNP-402

Part NumberPFC2225BNP-402

Manufacturer

Description

Datasheet

Package / CaseVertical, No Base, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

PFC2225BNP-402 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package100
ManufacturerSumida America Components Inc.
SeriesPFC
PackagingBulk
Part StatusActive
Filter TypePower Line
Number of Lines2
Inductance @ Frequency4mH @ 1kHz
Current Rating (Max)4A
DC Resistance (DCR) (Max)54mOhm
Voltage Rating - DC-
Voltage Rating - AC250V
Operating Temperature-40°C ~ 85°C
Ratings-
Approvals-
Features-
Mounting TypeThrough Hole
Size / Dimension0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max)1.063" (27.00mm)
Package / CaseVertical, No Base, 4 PC Pin
