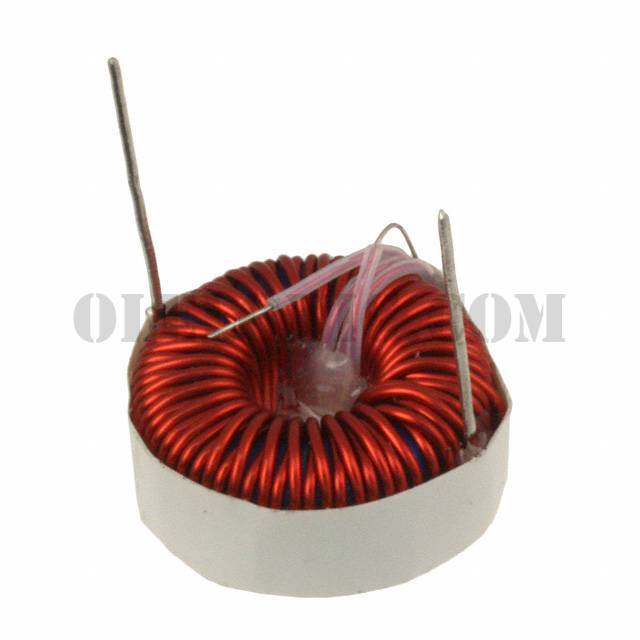

CTX02-12378


CTX02-12378

Part NumberCTX02-12378

Manufacturer

Description

Datasheet

Package / CaseRadial, Horizontal (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CTX02-12378 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package500
ManufacturerEaton - Electronics Division
SeriesPFC
PackagingBulk
Part StatusActive
TypeToroidal
Material - Core-
Inductance769µH
Tolerance-
Current Rating (Amps)2.6A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)31mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-20°C ~ 105°C
Inductance Frequency - Test100kHz
Mounting TypeThrough Hole
Package / CaseRadial, Horizontal (Open)
Supplier Device Package-
Size / Dimension1.350" Dia (34.29mm)
Height - Seated (Max)0.720" (18.29mm)
