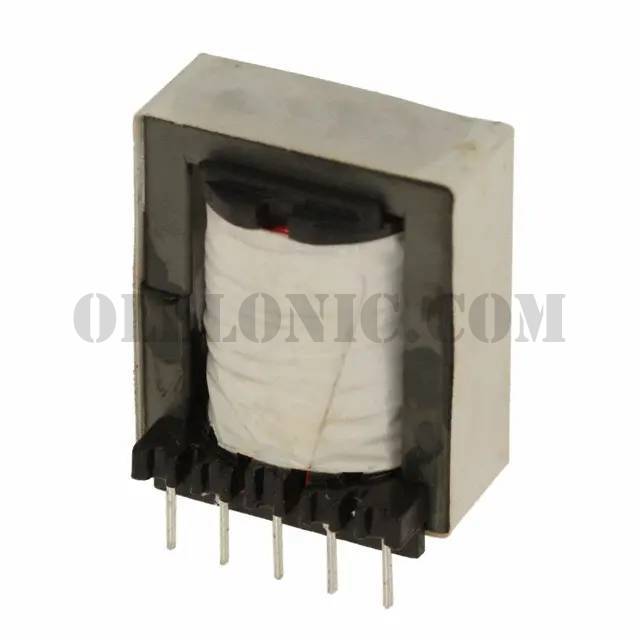

CTX16-15954

CTX16-15954

Part NumberCTX16-15954

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 1MH 3.1A 212 MOHM TH

DatasheetCTX16-15954

Package / CaseRadial, Vertical, 10 Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1mH Unshielded Toroidal Inductor 3.1A 212mOhm Max Radial, Vertical, 10 Leads

To learn about the specification of CTX16-15954, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX16-15954 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTX16-15954.
We are offering CTX16-15954 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTX16-15954 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	CTX16-15954
Standard Package	168
Manufacturer	Eaton - Electronics Division
Series	PFC
Packaging	Bulk
Part Status	Active
Type	Toroidal
Material - Core	Ferrite
Inductance	1mH
Tolerance	-
Current Rating (Amps)	3.1A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	212mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-20°C ~ 105°C
Inductance Frequency - Test	10kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical, 10 Leads
Supplier Device Package	-
Size / Dimension	1.181" L x 0.945" W (30.00mm x 24.00mm)
Height - Seated (Max)	1.417" (36.00mm)
