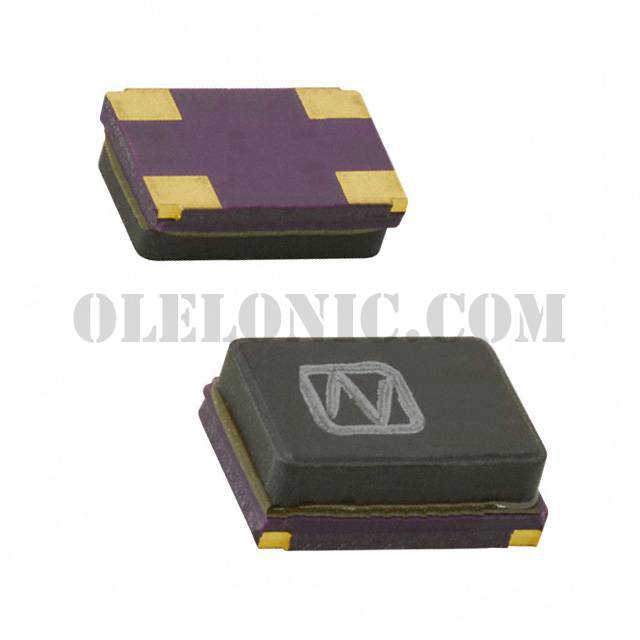

Categories	Crystals, Oscillators, Resonators / Crystals
Datasheet	NX1612SA-32.000MHZ-CHP-CIS-3
Standard Package	1
Manufacturer	NDK America, Inc.
Series	NX1612SA
Packaging	Cut Tape (CT)
Part Status	Active
Type	MHz Crystal
Frequency	32MHz
Frequency Stability	±20ppm
Frequency Tolerance	±10ppm
Load Capacitance	6pF
ESR (Equivalent Series Resistance)	100 Ohms
Operating Mode	Fundamental
Operating Temperature	-40°C ~ 85°C
Ratings	-
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension	0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max)	0.014" (0.35mm)

NX1612SA-52MHZ-EXS00A-CS08602	NDK America, Inc., 52MHz Crystal 8pF 80 Ohms 4-SMD, No Lead, NX1612SA	View
NX1612SA-50M-EXS00A-CS08403	NDK America, Inc., 50MHz ±10ppm Crystal 8pF 80 Ohms 4-SMD, No Lead, NX1612SA	View
NX1612SA-32MHZ-EXS00A-CS09166	NDK America, Inc., 32MHz Crystal 8pF 100 Ohms 4-SMD, No Lead, NX1612SA	View
NX1612SA-32MHZ-EXS00A-CS09166	NDK America, Inc., 32MHz Crystal 8pF 100 Ohms 4-SMD, No Lead, NX1612SA	View
NX1612SA 48MHZ EXS00A-CS08231	NDK America, Inc., 48MHz Crystal 7pF 80 Ohms 4-SMD, No Lead, NX1612SA	View
NX1612SA-48MHZ-EXS00A-CS10127	NDK America, Inc., 48MHz Crystal 10pF 80 Ohms 4-SMD, No Lead, NX1612SA	View
NX1612SA 48MHZ EXS00A-CS08231	NDK America, Inc., 48MHz Crystal 7pF 80 Ohms 4-SMD, No Lead, NX1612SA	View
NX1612SA-32.000MHZ-CHP-CIS-3	NDK America, Inc., 32MHz ±10ppm Crystal 6pF 100 Ohms 4-SMD, No Lead, NX1612SA	View
NX1612SA-32MHZ-EXS00A-CS09462	NDK America, Inc., 32MHz Crystal 10pF 100 Ohms 4-SMD, No Lead, NX1612SA	View
NX1612SA-50M-EXS00A-CS08403	NDK America, Inc., 50MHz ±10ppm Crystal 8pF 80 Ohms 4-SMD, No Lead, NX1612SA	View
NX1612SA-32MHZ-EXS00A-CS09462	NDK America, Inc., 32MHz Crystal 10pF 100 Ohms 4-SMD, No Lead, NX1612SA	View
NX1612SA-52MHZ-EXS00A-CS08602	NDK America, Inc., 52MHz Crystal 8pF 80 Ohms 4-SMD, No Lead, NX1612SA	View

NX1612SA-32.000MHZ-CHP-CIS-3

Part NumberNX1612SA-32.000MHZ-CHP-CIS-3
