MT3S20P(TE12L,F)

MT3S20P(TE12L,F)

Part NumberMT3S20P(TE12L,F)

ManufacturerToshiba Semiconductor and Storage

DescriptionRF TRANS NPN 12V 7GHZ PW-MINI

DatasheetMT3S20P

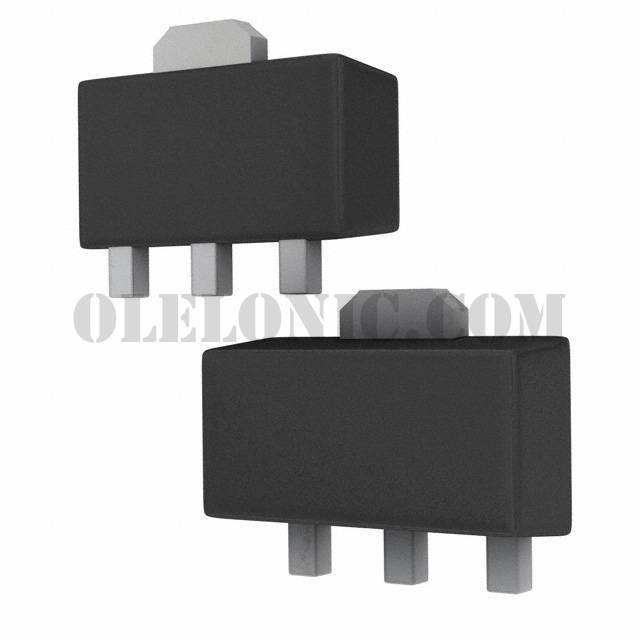

Package / CaseTO-243AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionRF Transistor NPN 12V 80mA 7GHz 1.8W Surface Mount PW-MINI

To learn about the specification of MT3S20P(TE12L,F), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MT3S20P(TE12L,F) with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MT3S20P(TE12L,F).
We are offering MT3S20P(TE12L,F) for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MT3S20P(TE12L,F) - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	MT3S20P
Standard Package	1000
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	12V
Frequency - Transition	7GHz
Noise Figure (dB Typ @ f)	1.45dB @ 1GHz
Gain	16.5dB
Power - Max	1.8W
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 50mA, 5V
Current - Collector (Ic) (Max)	80mA
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-243AA
Supplier Device Package	PW-MINI
