Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF

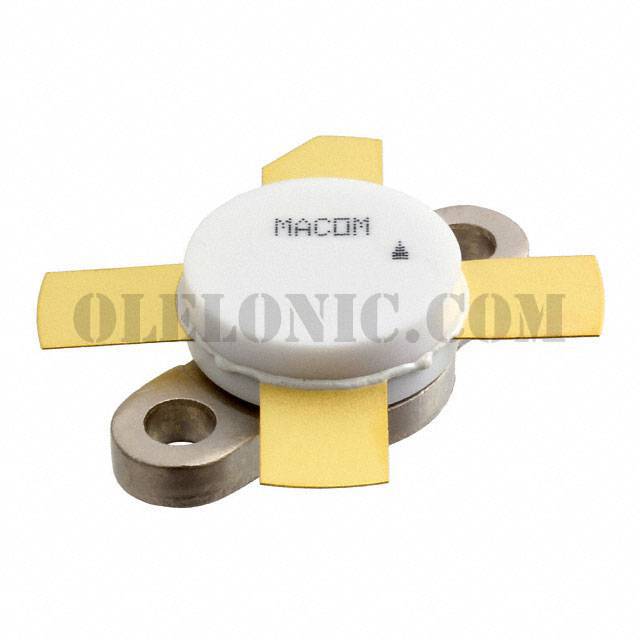

Datasheet	MRF454
Standard Package	10
Manufacturer	M/A-Com Technology Solutions
Series	-
Packaging	Tray
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	25V
Frequency - Transition	-
Noise Figure (dB Typ @ f)	-
Gain	12dB
Power - Max	80W
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 5A, 5V
Current - Collector (Ic) (Max)	20A
Operating Temperature	-
Mounting Type	Chassis Mount
Package / Case	211-11, Style 2
Supplier Device Package	211-11, Style 2
