NSVF6003SB6T1G

NSVF6003SB6T1G

Part NumberNSVF6003SB6T1G

ManufacturerON Semiconductor

DescriptionRF TRANS NPN 12V 7GHZ 6CPH

DatasheetNSVF6003SB6

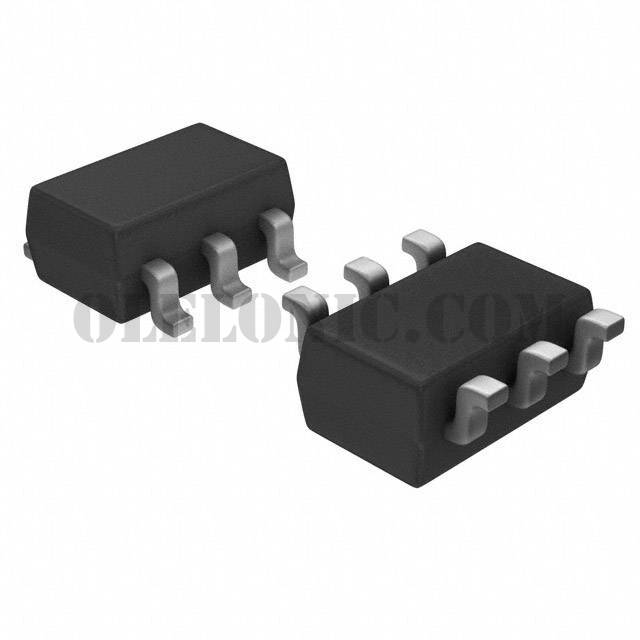

Package / CaseSOT-23-6 Thin, TSOT-23-6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionRF Transistor NPN 12V 150mA 7GHz 800mW Surface Mount 6-CPH

To learn about the specification of NSVF6003SB6T1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NSVF6003SB6T1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NSVF6003SB6T1G.
We are offering NSVF6003SB6T1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NSVF6003SB6T1G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	NSVF6003SB6
Standard Package	1
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	12V
Frequency - Transition	7GHz
Noise Figure (dB Typ @ f)	3dB @ 1GHz
Gain	9dB
Power - Max	800mW
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 50mA, 5V
Current - Collector (Ic) (Max)	150mA
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package	6-CPH
