LP0701LG-G

LP0701LG-G

Part NumberLP0701LG-G

ManufacturerMicrochip Technology

DescriptionMOSFET P-CH 16.5V 0.7A 8SOIC

DatasheetLP0701

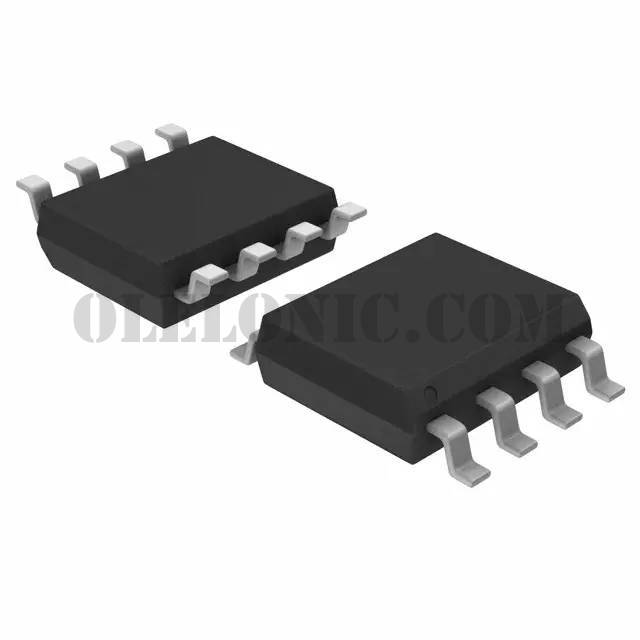

Package / Case8-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 16.5V 700mA (Tj) 1.5W (Tc) Surface Mount 8-SOIC

To learn about the specification of LP0701LG-G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LP0701LG-G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LP0701LG-G.
We are offering LP0701LG-G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LP0701LG-G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	LP0701
Standard Package	1
Manufacturer	Microchip Technology
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	16.5V
Current - Continuous Drain (Id) @ 25°C	700mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)	2V, 5V
Rds On (Max) @ Id, Vgs	1.5Ohm @ 300mA, 5V
Vgs(th) (Max) @ Id	1V @ 1.1mA
Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	250pF @ 15V
FET Feature	-
Power Dissipation (Max)	1.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOIC
Package / Case	8-SOIC (0.154", 3.90mm Width)
