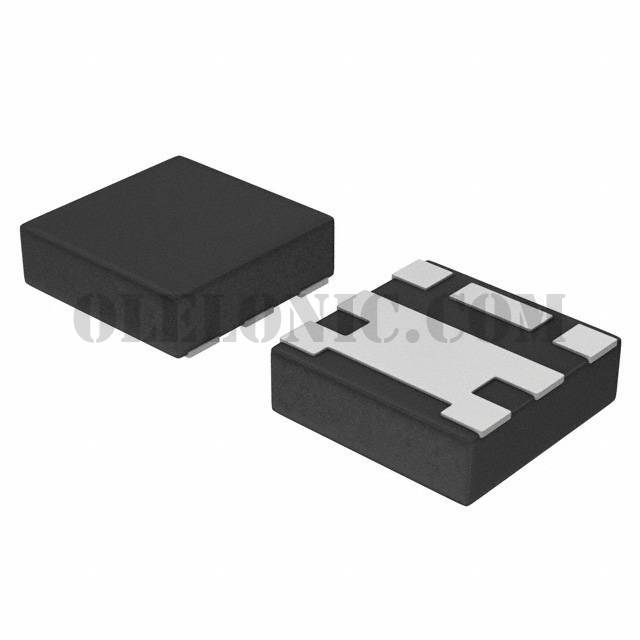

NTLUS3A90PZTAG

NTLUS3A90PZTAG

Part NumberNTLUS3A90PZTAG

ManufacturerON Semiconductor

DescriptionMOSFET P-CH 20V 2.6A 6UDFN

DatasheetNTLUS3A90PZ

Package / Case6-PowerUFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 2.6A (Ta) 600mW (Ta) Surface Mount 6-UDFN (1.6x1.6)

To learn about the specification of NTLUS3A90PZTAG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTLUS3A90PZTAG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTLUS3A90PZTAG.
We are offering NTLUS3A90PZTAG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTLUS3A90PZTAG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	NTLUS3A90PZ
Standard Package	3000
Manufacturer	ON Semiconductor
Series	µCool™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	2.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	62mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12.3nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	950pF @ 10V
FET Feature	-
Power Dissipation (Max)	600mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFN (1.6x1.6)
Package / Case	6-PowerUFDFN
