Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	KSP10
Standard Package	2000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Box (TB)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	25V
Frequency - Transition	650MHz
Noise Figure (dB Typ @ f)	-
Gain	-
Power - Max	350mW
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 4mA, 10V
Current - Collector (Ic) (Max)	-
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole

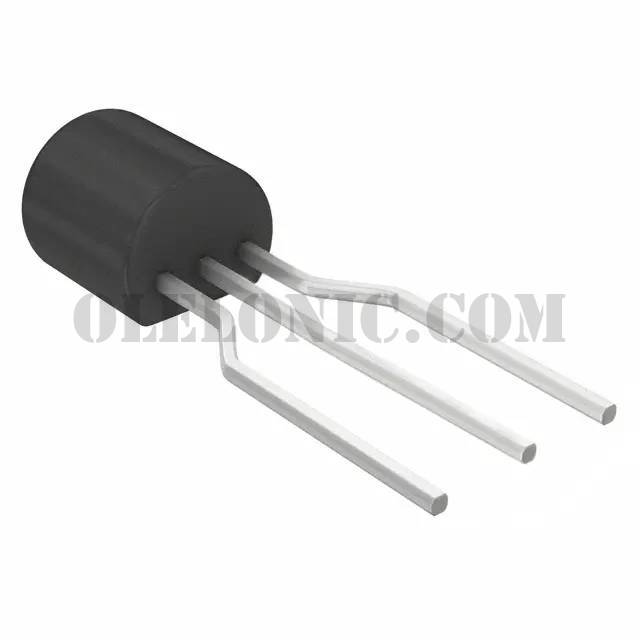

Package / Case	TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package	TO-92-3
Base Part Number	KSP10
