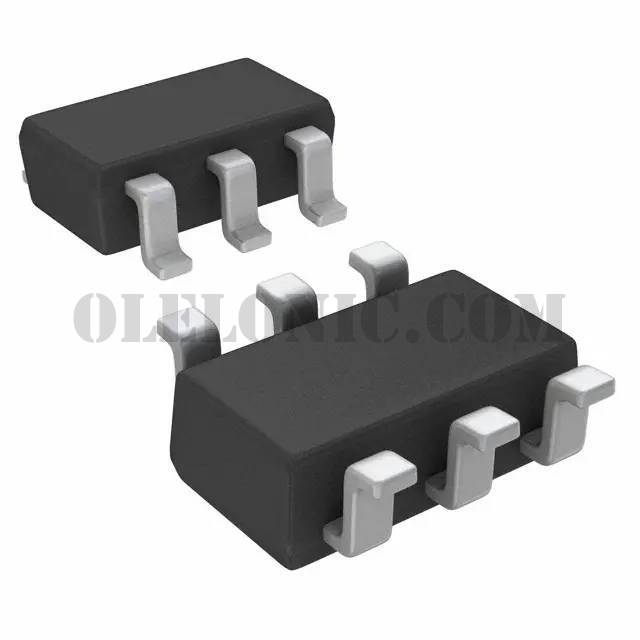

CPH6003A-TL-E


CPH6003A-TL-E

Part NumberCPH6003A-TL-E

Manufacturer

Description

Datasheet

Package / CaseSOT-23-6 Thin, TSOT-23-6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CPH6003A-TL-E - Product Attributes

Categories Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet
Standard Package1
ManufacturerON Semiconductor
Series-
PackagingCut Tape (CT)
Part StatusActive
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)12V
Frequency - Transition7GHz
Noise Figure (dB Typ @ f)1.8dB @ 1GHz
Gain9dB
Power - Max800mW
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 50mA, 5V
Current - Collector (Ic) (Max)150mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-23-6 Thin, TSOT-23-6
Supplier Device Package6-CPH
