IRFH4253DTRPBF

IRFH4253DTRPBF

Part NumberIRFH4253DTRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET 2N-CH 25V 64A/145A PQFN

DatasheetIRFH4253DPbF

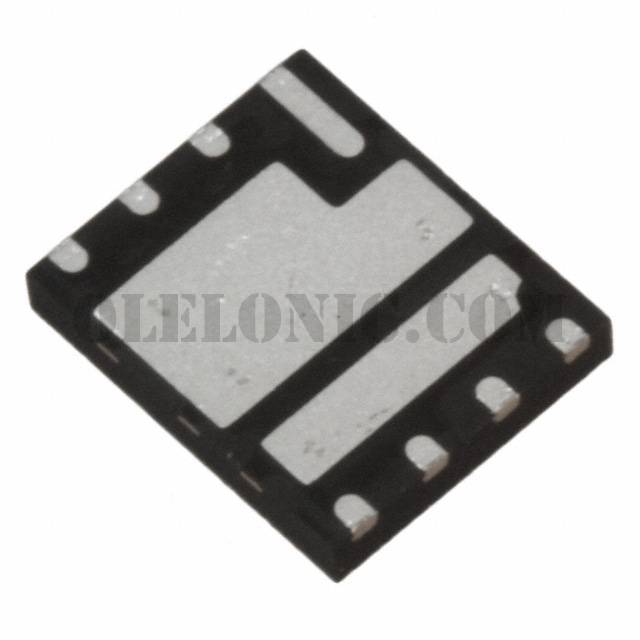

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 25V 64A, 145A 31W, 50W Surface Mount PQFN (5x6)

To learn about the specification of IRFH4253DTRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFH4253DTRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFH4253DTRPBF.
We are offering IRFH4253DTRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFH4253DTRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	IRFH4253DPbF
Standard Package	1
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Cut Tape (CT)
Part Status	Not For New Designs
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	64A, 145A
Rds On (Max) @ Id, Vgs	3.2mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2.1V @ 35µA
Gate Charge (Qg) (Max) @ Vgs	15nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1314pF @ 13V
Power - Max	31W, 50W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	PQFN (5x6)
