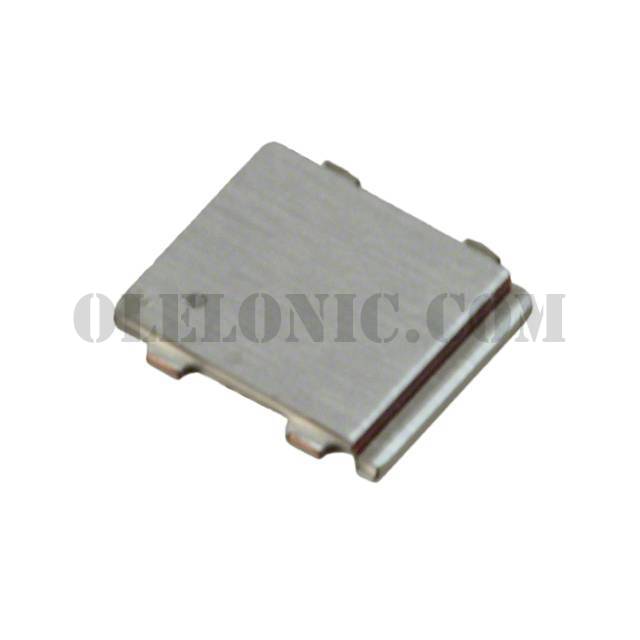

CSD87381PT

CSD87381PT

Part NumberCSD87381PT

ManufacturerTexas Instruments

DescriptionMOSFET 2N-CH 30V 15A 5PTAB

DatasheetCSD87381P

Package / Case5-LGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 30V 15A 4W Surface Mount 5-PTAB (3x2.5)

To learn about the specification of CSD87381PT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD87381PT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD87381PT.
We are offering CSD87381PT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD87381PT - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CSD87381P
Standard Package	250
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	15A
Rds On (Max) @ Id, Vgs	16.3mOhm @ 8A, 8V
Vgs(th) (Max) @ Id	1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	564pF @ 15V
Power - Max	4W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	5-LGA
Supplier Device Package	5-PTAB (3x2.5)
Base Part Number	CSD87381
