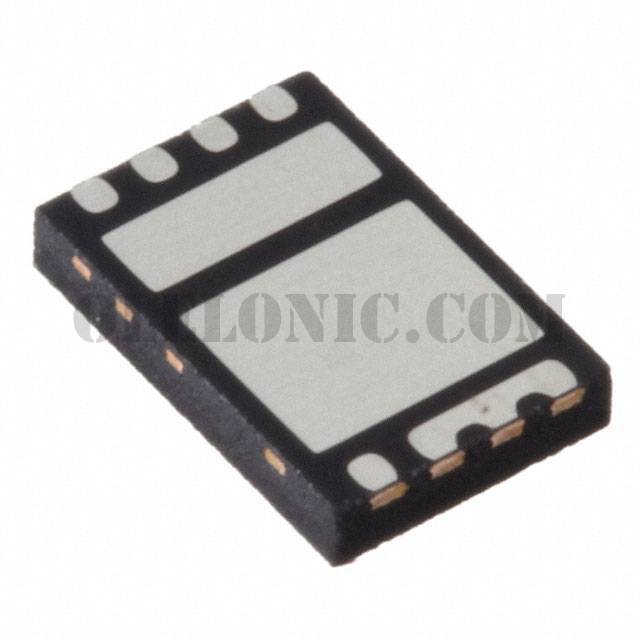

FDML7610S


FDML7610S

Part NumberFDML7610S

Manufacturer

Description

Datasheet

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

FDML7610S - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet
Standard Package3000
ManufacturerON Semiconductor
SeriesPowerTrench®
PackagingTape & Reel (TR)
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C12A, 17A
Rds On (Max) @ Id, Vgs7.5mOhm @ 12A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs28nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1750pF @ 15V
Power - Max800mW, 900mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device Package8-MLP (3x4.5)
