IRF6810STRPBF

IRF6810STRPBF

Part NumberIRF6810STRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N CH 25V 16A S1

DatasheetIRF6810STR (1) PBF

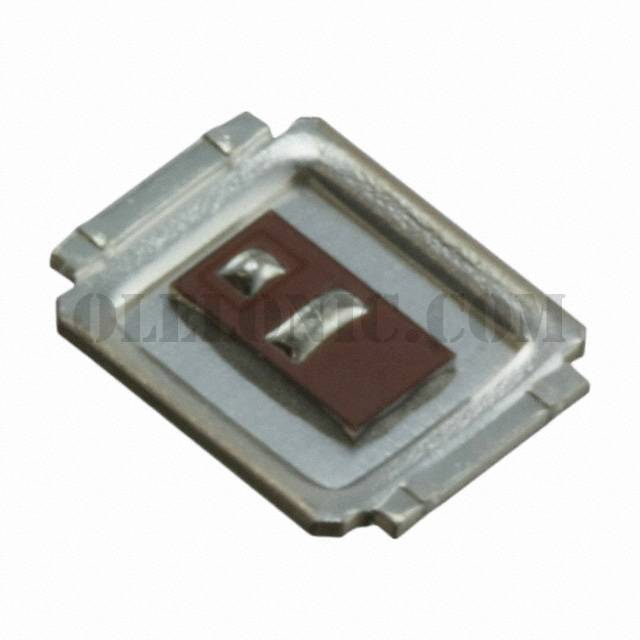

Package / CaseDirectFET™ Isometric S1

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 25V 16A (Ta), 50A (Tc) 2.1W (Ta), 20W (Tc) Surface Mount DIRECTFET S1

To learn about the specification of IRF6810STRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRF6810STRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRF6810STRPBF.
We are offering IRF6810STRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRF6810STRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRF6810STR (1) PBF
Standard Package	1
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Cut Tape (CT)
Part Status	Not For New Designs
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	16A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	5.2mOhm @ 16A, 10V
Vgs(th) (Max) @ Id	2.1V @ 25µA
Gate Charge (Qg) (Max) @ Vgs	11nC @ 4.5V
Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	1038pF @ 13V
FET Feature	-
Power Dissipation (Max)	2.1W (Ta), 20W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DIRECTFET S1
Package / Case	DirectFET™ Isometric S1
