Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single

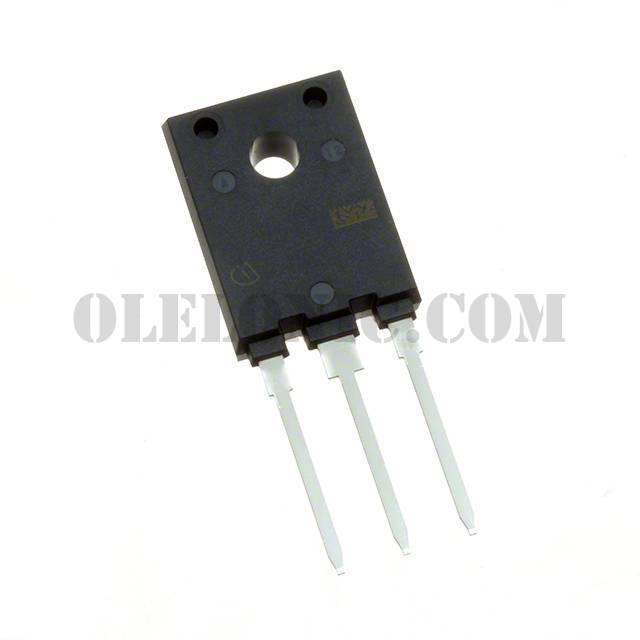

Datasheet	IKFW60N60DH3E
Standard Package	240
Manufacturer	Infineon Technologies
Series	TrenchStop™
Packaging	Tube
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	53A
Current - Collector Pulsed (Icm)	150A
Vce(on) (Max) @ Vge, Ic	2.7V @ 15V, 50A
Power - Max	141W
Switching Energy	1.57mJ (on), 720µJ (off)
Input Type	Standard
Gate Charge	210nC
Td (on/off) @ 25°C	23ns/170ns
Test Condition	400V, 50A, 7Ohm, 15V
Reverse Recovery Time (trr)	68ns
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	PG-TO247-3-AI
