FGY75N60SMD
FGY75N60SMD

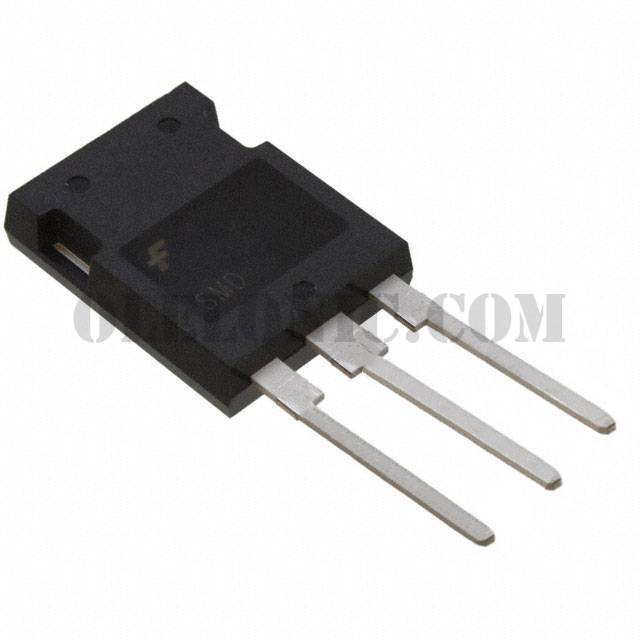

Part Number FGY75N60SMD Description IGBT 600V 150A 750W POWER-247 Package / Case TO-247-3 VariantUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Field Stop 600V 150A 750W Through Hole PowerTO-247-3
To learn about the specification of FGY75N60SMD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FGY75N60SMD with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FGY75N60SMD.
We are offering FGY75N60SMD for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
FGY75N60SMD - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet FGY75N60SMD Standard Package 450 Manufacturer ON Semiconductor Series - Packaging Tube Part Status Active IGBT Type Field Stop Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 150A Current - Collector Pulsed (Icm) 225A Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 75A Power - Max 750W Switching Energy 2.3mJ (on), 770µJ (off) Input Type Standard Gate Charge 248nC Td (on/off) @ 25°C 24ns/136ns Test Condition 400V, 75A, 3Ohm, 15V Reverse Recovery Time (trr) 55ns Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Variant Supplier Device Package PowerTO-247-3
