IRG4BC40WPBF
IRG4BC40WPBF

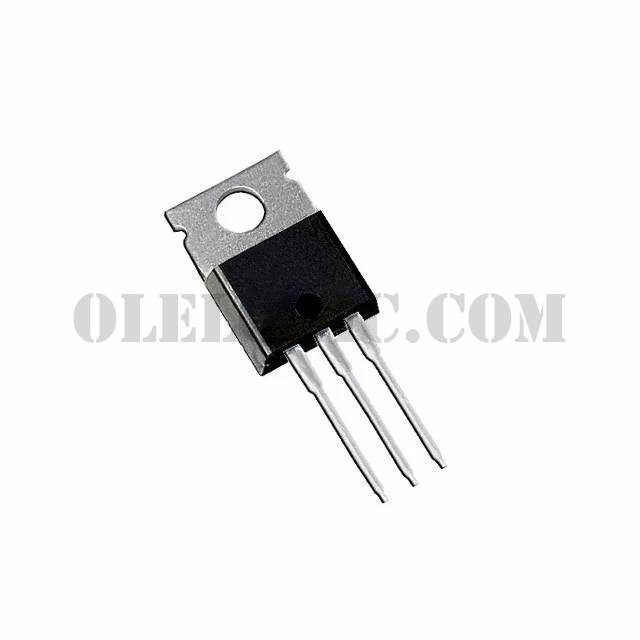

Part Number IRG4BC40WPBF Description IGBT 600V 40A 160W TO220AB Package / Case TO-220-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 600V 40A 160W Through Hole TO-220AB
To learn about the specification of IRG4BC40WPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRG4BC40WPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRG4BC40WPBF.
We are offering IRG4BC40WPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IRG4BC40WPBF - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IRG4BC40WPbF Standard Package 1000 Manufacturer Infineon Technologies Series - Packaging Tube Part Status Not For New Designs IGBT Type - Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 40A Current - Collector Pulsed (Icm) 160A Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 20A Power - Max 160W Switching Energy 110µJ (on), 230µJ (off) Input Type Standard Gate Charge 98nC Td (on/off) @ 25°C 27ns/100ns Test Condition 480V, 20A, 10Ohm, 15V Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case TO-220-3 Supplier Device Package TO-220AB
