FDMA008P20LZ

FDMA008P20LZ

Part NumberFDMA008P20LZ

ManufacturerON Semiconductor

DescriptionMOSFET P-CHANNEL 20V 12A 6PQFN

DatasheetFDMA008P20LZ

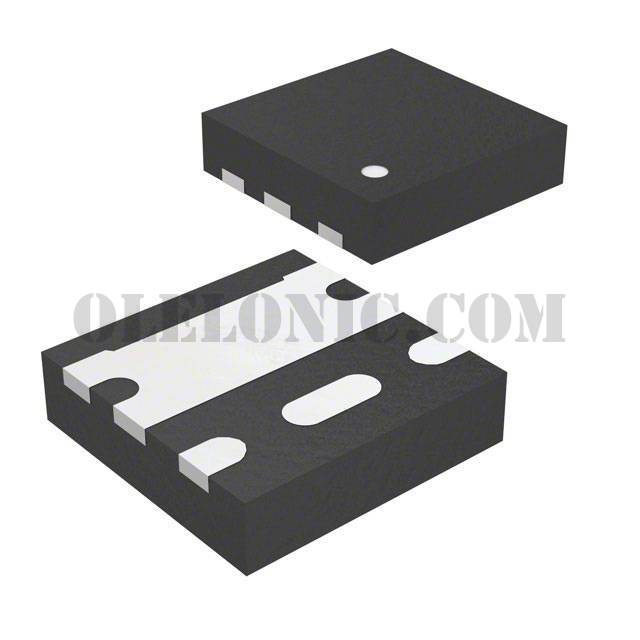

Package / Case6-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 12A (Ta) 2.4W (Ta) Surface Mount 6-PQFN (2x2)

To learn about the specification of FDMA008P20LZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMA008P20LZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMA008P20LZ.
We are offering FDMA008P20LZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMA008P20LZ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMA008P20LZ
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	12A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	13mOhm @ 2.5A, 4.5V
Vgs(th) (Max) @ Id	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	39nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	4383pF @ 10V
FET Feature	-
Power Dissipation (Max)	2.4W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-PQFN (2x2)
Package / Case	6-PowerWDFN
