FDB8441

FDB8441

Part NumberFDB8441

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 40V 80A D2PAK

DatasheetFDB8441

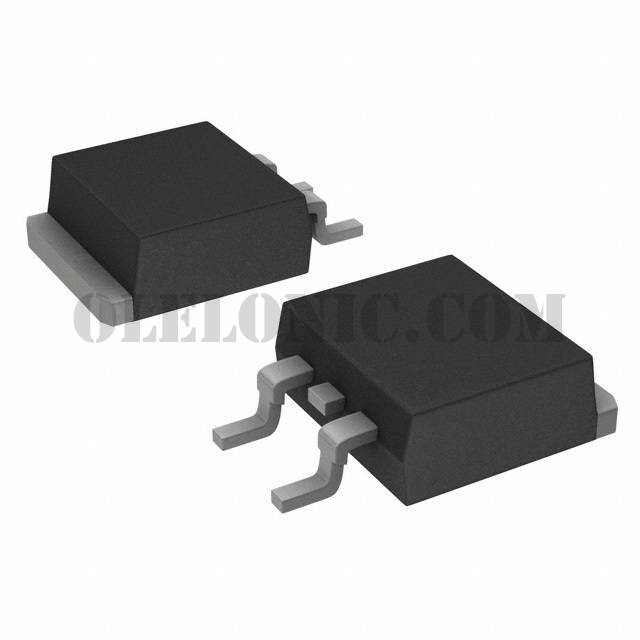

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 28A (Ta), 120A (Tc) 300W (Tc) Surface Mount TO-263AB

To learn about the specification of FDB8441, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDB8441 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDB8441.
We are offering FDB8441 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDB8441 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDB8441
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	28A (Ta), 120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.5mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	280nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	15000pF @ 25V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263AB
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
