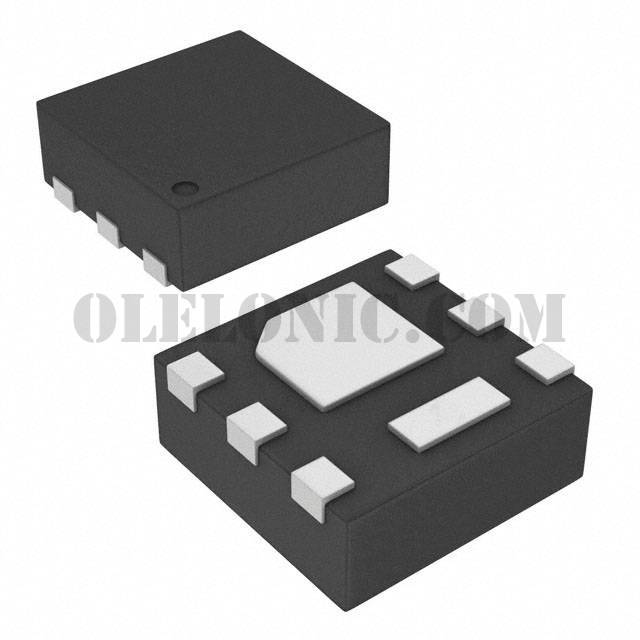

CSD13202Q2

CSD13202Q2

Part NumberCSD13202Q2

ManufacturerTexas Instruments

DescriptionMOSFET N-CH 12V 76A 6SON

DatasheetCSD13202Q2

Package / Case6-VDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 12V 22A (Ta) 2.7W (Ta) Surface Mount 6-WSON (2x2)

To learn about the specification of CSD13202Q2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD13202Q2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD13202Q2.
We are offering CSD13202Q2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD13202Q2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD13202Q2
Standard Package	1
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	22A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	9.3mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.6nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	997pF @ 6V
FET Feature	-
Power Dissipation (Max)	2.7W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WSON (2x2)
Package / Case	6-VDFN Exposed Pad
