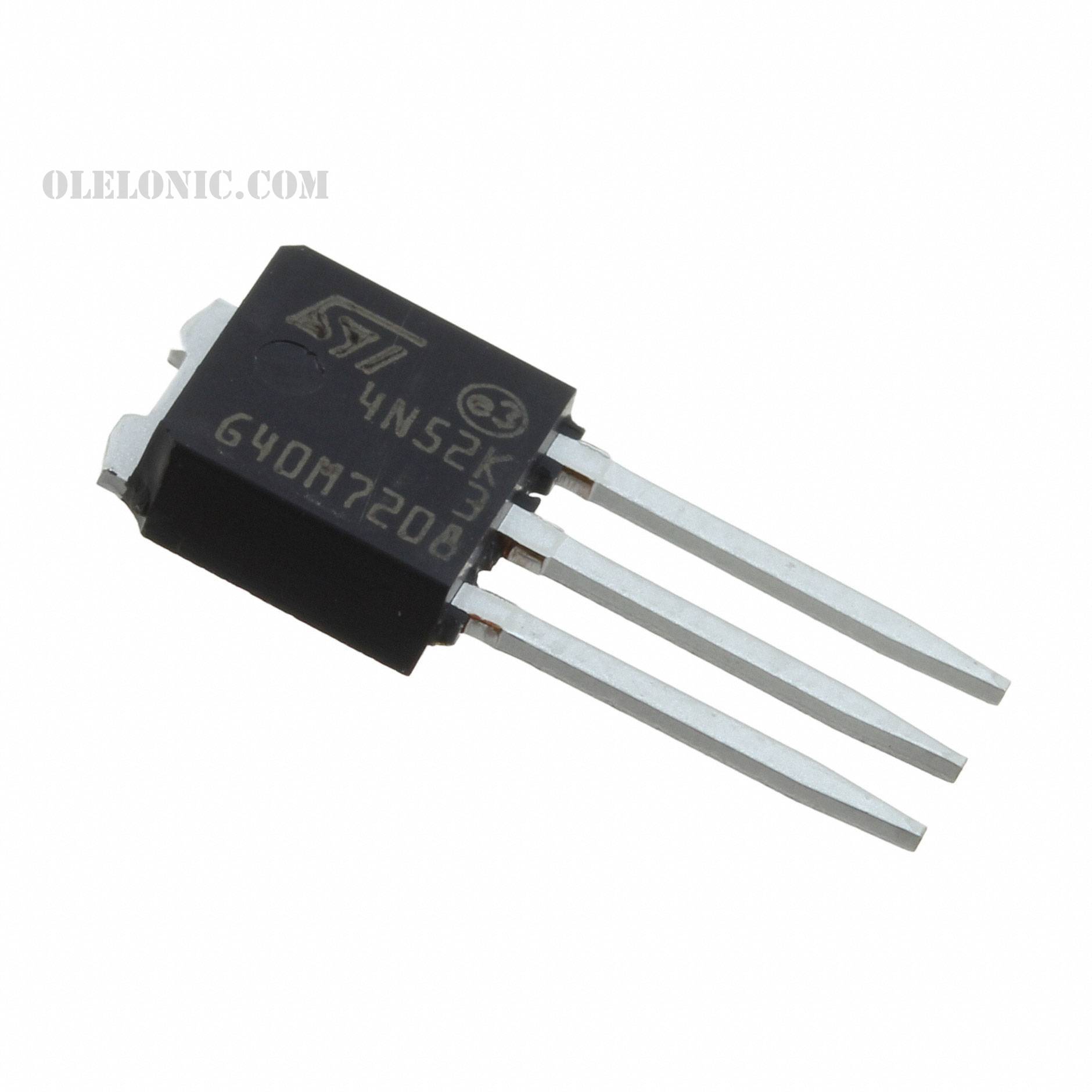

STU4N52K3

STU4N52K3

Part NumberSTU4N52K3

ManufacturerSTMicroelectronics

DescriptionMOSFET N-CH 525V 2.5A IPAK

DatasheetSTx4N52K3

Package / CaseTO-251-3 Short Leads, IPak, TO-251AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 525V 2.5A (Tc) 45W (Tc) Through Hole I-PAK

To learn about the specification of STU4N52K3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STU4N52K3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STU4N52K3.
We are offering STU4N52K3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STU4N52K3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STx4N52K3
Standard Package	75
Manufacturer	STMicroelectronics
Series	SuperMESH3™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	525V
Current - Continuous Drain (Id) @ 25°C	2.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.6Ohm @ 1.25A, 10V
Vgs(th) (Max) @ Id	4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs	11nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	334pF @ 100V
FET Feature	-
Power Dissipation (Max)	45W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I-PAK
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
