TP65H050WS
TP65H050WS

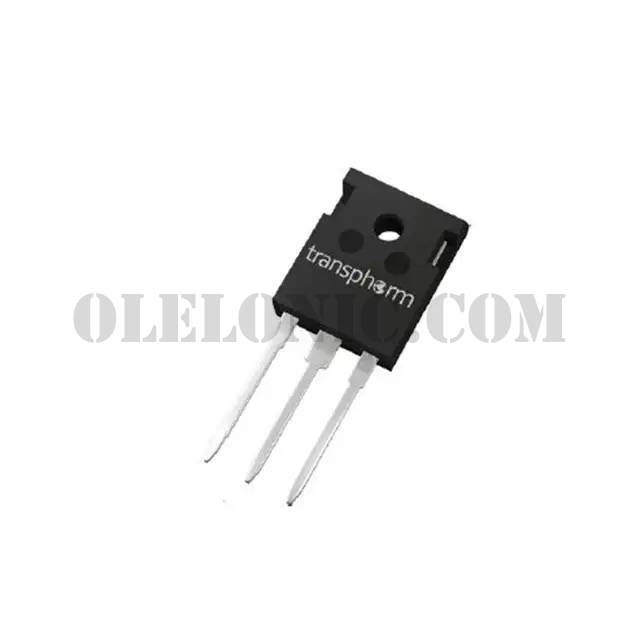

Part Number TP65H050WS Description GANFET N-CH 650V 34A TO247-3 Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description N-Channel 650V 34A (Tc) 119W (Tc) Through Hole TO-247-3
To learn about the specification of TP65H050WS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TP65H050WS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TP65H050WS.
We are offering TP65H050WS for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
TP65H050WS - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet TP65H050WS Standard Package 30 Manufacturer Transphorm Series - Packaging Tube Part Status Active FET Type N-Channel Technology GaNFET (Gallium Nitride) Drain to Source Voltage (Vdss) 650V Current - Continuous Drain (Id) @ 25°C 34A (Tc) Drive Voltage (Max Rds On, Min Rds On) 12V Rds On (Max) @ Id, Vgs 60mOhm @ 22A, 10V Vgs(th) (Max) @ Id 4.8V @ 700µA Gate Charge (Qg) (Max) @ Vgs 24nC @ 10V Vgs (Max) ±20V Input Capacitance (Ciss) (Max) @ Vds 1000pF @ 400V FET Feature - Power Dissipation (Max) 119W (Tc) Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Supplier Device Package TO-247-3 Package / Case TO-247-3
