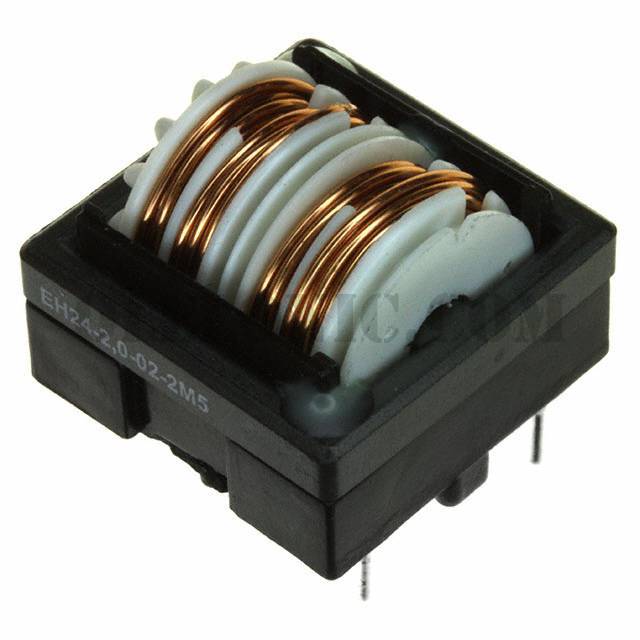

EH24-2.0-02-2M5
EH24-2.0-02-2M5
Part Number EH24-2.0-02-2M5 Description CMC 2.5MH 2A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2.5mH @ 400Hz 2 Line Common Mode Choke Through Hole 2A DCR 62mOhm (Typ)
To learn about the specification of EH24-2.0-02-2M5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EH24-2.0-02-2M5 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EH24-2.0-02-2M5.
We are offering EH24-2.0-02-2M5 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EH24-2.0-02-2M5 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 500 Manufacturer Schaffner EMC Inc. Series EH Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 2.5mH @ 400Hz Current Rating (Max) 2A DC Resistance (DCR) (Max) 62mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 0.945" L x 0.945" W (24.00mm x 24.00mm) Height (Max) 0.827" (21.00mm) Package / Case Horizontal, 4 PC Pin
