CTX22-16885

CTX22-16885

Part NumberCTX22-16885

ManufacturerEaton - Electronics Division

DescriptionFIXED IND 200UH 7A 164 MOHM TH

DatasheetCTX22-16885

Package / CaseRadial, Vertical, 6 Leads (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

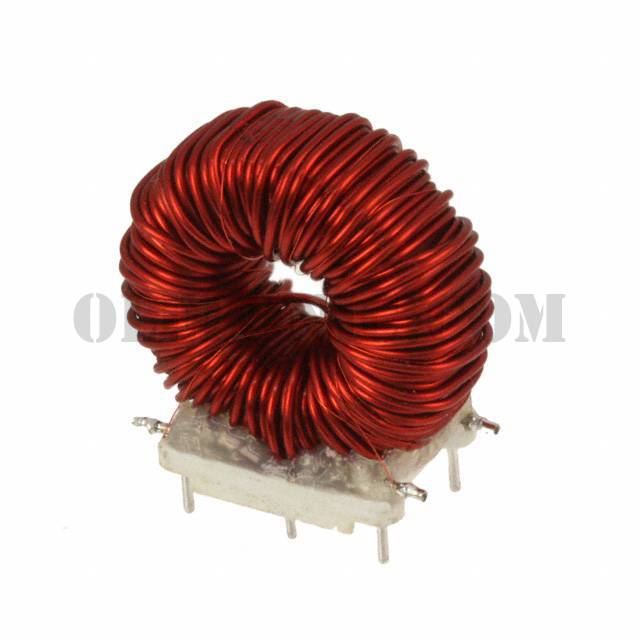

Detailed Description200µH Unshielded Toroidal Inductor 7A 164mOhm Max Radial, Vertical, 6 Leads (Open)

To learn about the specification of CTX22-16885, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX22-16885 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTX22-16885.
We are offering CTX22-16885 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTX22-16885 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	CTX22-16885
Standard Package	36
Manufacturer	Eaton - Electronics Division
Series	PFC
Packaging	Bulk
Part Status	Active
Type	Toroidal
Material - Core	Iron Powder
Inductance	200µH
Tolerance	-
Current Rating (Amps)	7A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	164mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-20°C ~ 105°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical, 6 Leads (Open)
Supplier Device Package	-
Size / Dimension	1.394" L x 0.866" W (35.40mm x 22.00mm)
Height - Seated (Max)	1.850" (47.00mm)
