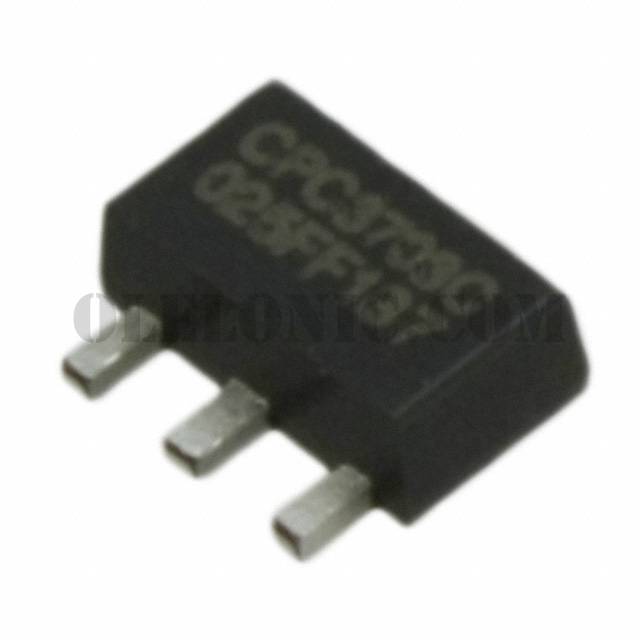

CPC3703CTR


CPC3703CTR

Part NumberCPC3703CTR

Manufacturer

Description

Datasheet

Package / CaseTO-243AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CPC3703CTR - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package1000
ManufacturerIXYS Integrated Circuits Division
Series-
PackagingTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)250V
Current - Continuous Drain (Id) @ 25°C360mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)0V
Rds On (Max) @ Id, Vgs4Ohm @ 200mA, 0V
Vgs(th) (Max) @ Id-
Vgs (Max)±15V
Input Capacitance (Ciss) (Max) @ Vds350pF @ 25V
FET FeatureDepletion Mode
Power Dissipation (Max)1.1W (Ta)
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageSOT-89-3
Package / CaseTO-243AA
