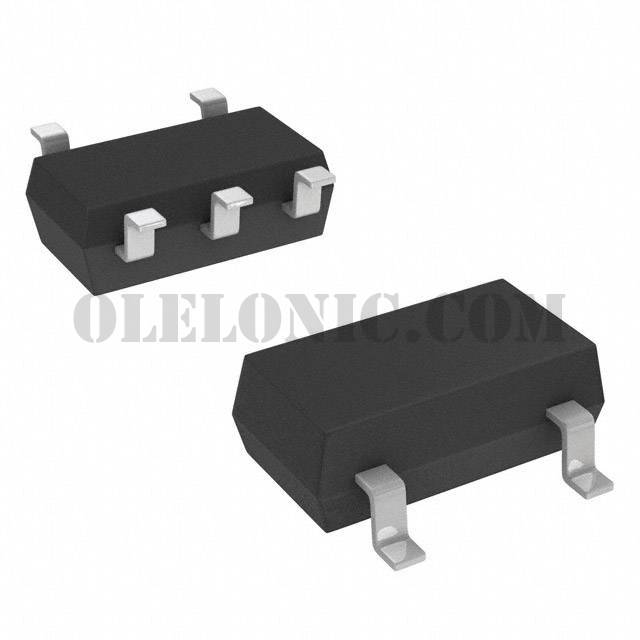

DN1509K1-G

DN1509K1-G

Part NumberDN1509K1-G

ManufacturerMicrochip Technology

DescriptionMOSFET N-CH 90V 0.2A SOT23-5

DatasheetDN1509

Package / CaseSC-74A, SOT-753

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 90V 200mA (Tj) 490mW (Ta) Surface Mount SOT-23-5

To learn about the specification of DN1509K1-G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DN1509K1-G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DN1509K1-G.
We are offering DN1509K1-G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DN1509K1-G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DN1509
Standard Package	3000
Manufacturer	Microchip Technology
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	90V
Current - Continuous Drain (Id) @ 25°C	200mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)	0V
Rds On (Max) @ Id, Vgs	6Ohm @ 200mA, 0V
Vgs(th) (Max) @ Id	-
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	150pF @ 25V
FET Feature	Depletion Mode
Power Dissipation (Max)	490mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-5
Package / Case	SC-74A, SOT-753
