Categories	Capacitors / Ceramic Capacitors
Datasheet	CK45-RR Series, Commercial
Standard Package	1000
Manufacturer	TDK Corporation
Series	CK45-RR
Packaging	Bulk
Part Status	Active
Capacitance	220pF
Tolerance	±10%
Voltage - Rated	1000V (1kV)
Temperature Coefficient	R
Operating Temperature	-25°C ~ 125°C
Features	High Voltage, Low Dissipation Factor
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.236" Dia (6.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Thickness (Max)	-
Lead Spacing	0.197" (5.00mm)
Lead Style	Formed Leads - Kinked

CK45-R3DD221K-NRA	TDK Corporation, 220pF ±10% 2000V (2kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3FD102K-NRA	TDK Corporation, 1000pF ±10% 3000V (3kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3FD221K-NRA	TDK Corporation, 220pF ±10% 3000V (3kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD102K-VRA	TDK Corporation, 1000pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD151KANRA	TDK Corporation, 150pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3DD331K-NRA	TDK Corporation, 330pF ±10% 2000V (2kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3FD222K-NRA	TDK Corporation, 2200pF ±10% 3000V (3kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3DD471KANRA	TDK Corporation, 470pF ±10% 2000V (2kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3DD471K-NRA	TDK Corporation, 470pF ±10% 2000V (2kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD152K-VRA	TDK Corporation, 1500pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD471K-VRA	TDK Corporation, 470pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD101KANRA	TDK Corporation, 100pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View

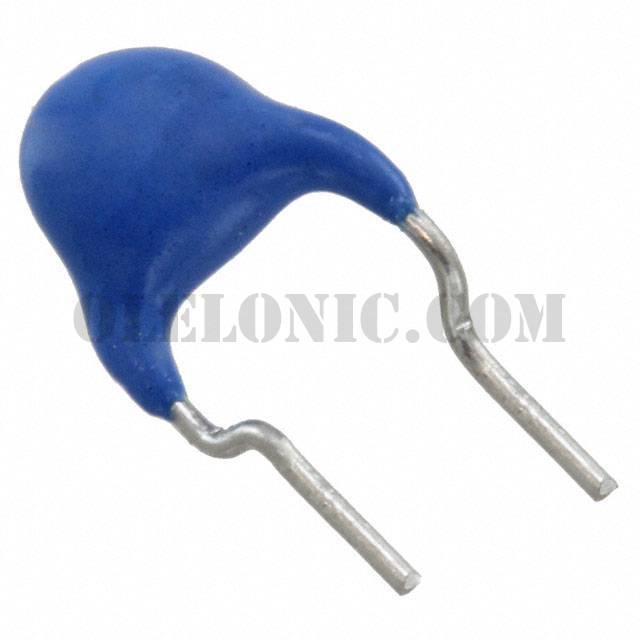

CK45-R3AD221K-NRA

Part NumberCK45-R3AD221K-NRA
