Categories	Capacitors / Ceramic Capacitors
Datasheet	CK45-RR Series, Automotive
Standard Package	1000
Manufacturer	TDK Corporation
Series	CK45-RR
Packaging	Bulk
Part Status	Active
Capacitance	680pF
Tolerance	±10%
Voltage - Rated	1000V (1kV)
Temperature Coefficient	R
Operating Temperature	-40°C ~ 125°C
Features	High Voltage, Low Dissipation Factor
Ratings	AEC-Q200
Applications	Automotive
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.374" Dia (9.50mm)
Height - Seated (Max)	0.531" (13.50mm)
Thickness (Max)	-
Lead Spacing	0.197" (5.00mm)
Lead Style	Formed Leads - Kinked

CK45-R3AD222K-NRA	TDK Corporation, 2200pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3DD151KANRA	TDK Corporation, 150pF ±10% 2000V (2kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3DD331KANRA	TDK Corporation, 330pF ±10% 2000V (2kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD152K-NRA	TDK Corporation, 1500pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3DD152K-NRA	TDK Corporation, 1500pF ±10% 2000V (2kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD152KANRA	TDK Corporation, 1500pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3AD331KAGRA	TDK Corporation, 330pF ±10% 1000V (1kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3FD222K-NRA	TDK Corporation, 2200pF ±10% 3000V (3kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3FD471K-GRA	TDK Corporation, 470pF ±10% 3000V (3kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3DD471KANRA	TDK Corporation, 470pF ±10% 2000V (2kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3DD331K-NRA	TDK Corporation, 330pF ±10% 2000V (2kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View
CK45-R3FD101K-NRA	TDK Corporation, 100pF ±10% 3000V (3kV) Ceramic Capacitor R Radial, Disc, CK45-RR	View

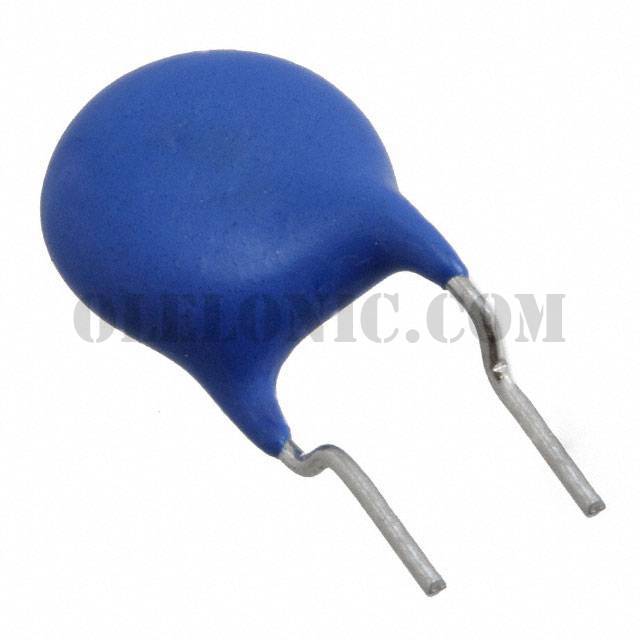

CK45-R3AD681KANRA

Part NumberCK45-R3AD681KANRA
