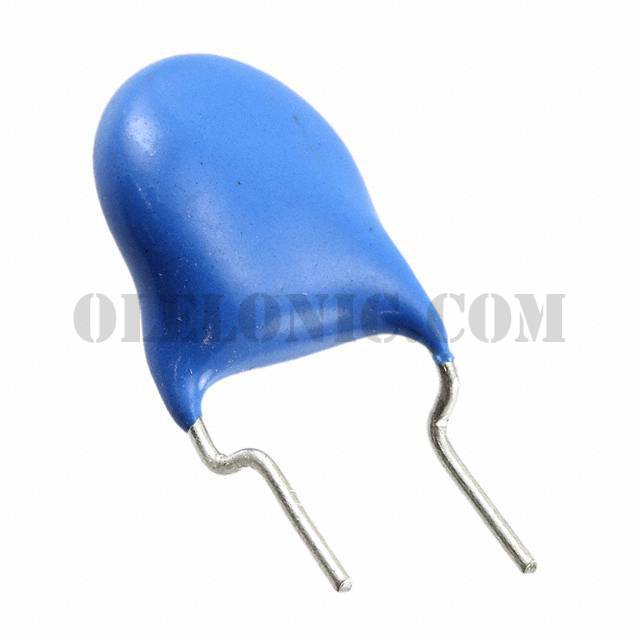

Categories	Capacitors / Ceramic Capacitors
Datasheet	CK45-RR Series, Automotive
Standard Package	1000
Manufacturer	TDK Corporation
Series	CK45-RR
Packaging	Bulk
Part Status	Active
Capacitance	470pF
Tolerance	±10%
Voltage - Rated	2000V (2kV)
Temperature Coefficient	R
Operating Temperature	-40°C ~ 125°C
Features	High Voltage, Low Dissipation Factor
Ratings	AEC-Q200
Applications	Automotive
Failure Rate	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.374" Dia (9.50mm)
Height - Seated (Max)	0.531" (13.50mm)
Thickness (Max)	-
Lead Spacing	0.295" (7.50mm)
Lead Style	Formed Leads - Kinked
