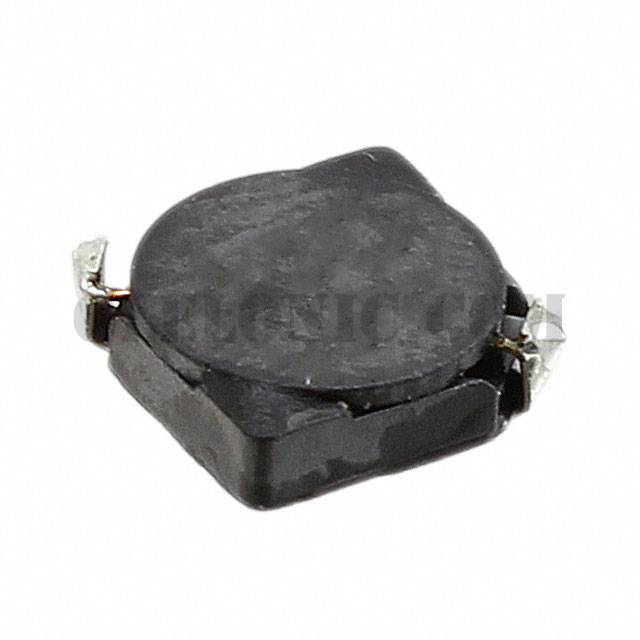

CDRH5D18NP-150NC


CDRH5D18NP-150NC

Part NumberCDRH5D18NP-150NC

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CDRH5D18NP-150NC - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerSumida America Components Inc.
SeriesCDRH5D18
PackagingCut Tape (CT)
Part StatusActive
Type-
Material - CoreFerrite
Inductance15µH
Tolerance±30%
Current Rating (Amps)970mA
Current - Saturation-
ShieldingShielded
DC Resistance (DCR)196mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-40°C ~ 100°C
Inductance Frequency - Test10kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.224" L x 0.224" W (5.70mm x 5.70mm)
Height - Seated (Max)0.079" (2.00mm)
