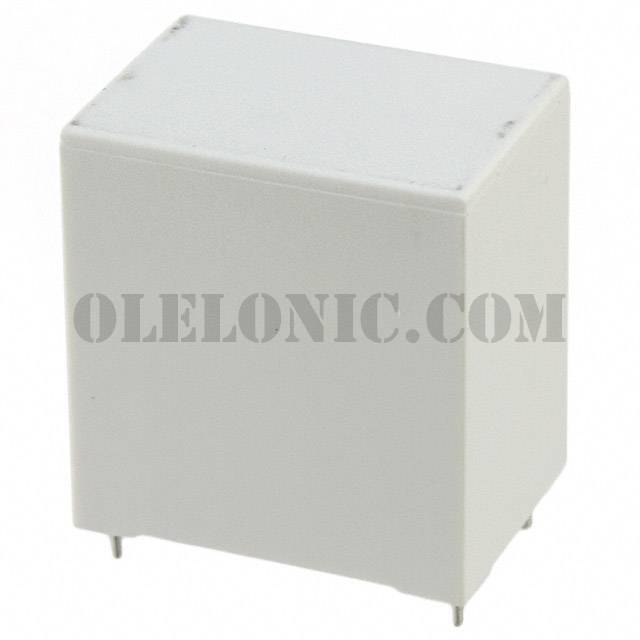

Categories	Capacitors / Film Capacitors
Datasheet	C4AE Series
Standard Package	36
Manufacturer	KEMET
Series	C4AE
Packaging	Bulk
Part Status	Active
Capacitance	30µF
Tolerance	±5%
Voltage Rating - AC	-
Voltage Rating - DC	700V
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	3.2 mOhms
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial - 4 Leads
Size / Dimension	1.654" L x 1.181" W (42.00mm x 30.00mm)
Height - Seated (Max)	1.772" (45.00mm)
Termination	PC Pins
Lead Spacing	1.476" (37.50mm)
Applications	DC Link, DC Filtering; High Frequency, Switching
Ratings	-
Features	-
