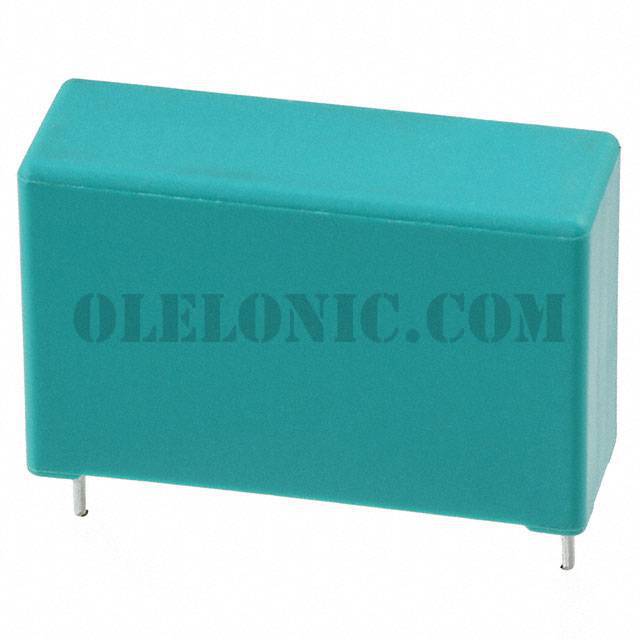

Categories	Capacitors / Film Capacitors
Datasheet	C4AE Series
Standard Package	96
Manufacturer	KEMET
Series	C4AE
Packaging	Bulk
Part Status	Active
Capacitance	5µF
Tolerance	±5%
Voltage Rating - AC	-
Voltage Rating - DC	700V
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	10.7 mOhms
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.240" L x 0.551" W (31.50mm x 14.00mm)
Height - Seated (Max)	1.110" (28.20mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	DC Link, DC Filtering; High Frequency, Switching
Ratings	-
Features	-

C4AEGBW6100A3NJ	KEMET, 100µF Film Capacitor 450V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEQBW4800A3FJ	KEMET, 8µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEQBW5120A3LJ	KEMET, 12µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEHBU4560A1XJ	KEMET, 5.6µF Film Capacitor 600V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEJBU4800A11J	KEMET, 8µF Film Capacitor 700V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEGBU5125A11J	KEMET, 12.5µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEGBU5100A1XK	KEMET, 10µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEOBU4500A11J	KEMET, 5µF Film Capacitor 900V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEQBW5200A3MJ	KEMET, 20µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEGBU5200A12J	KEMET, 20µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEHBW5300A3JJ	KEMET, 30µF Film Capacitor 600V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEOBW5200A3LJ	KEMET, 20µF Film Capacitor 900V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View

C4AEJBU4500A1YJ

Part NumberC4AEJBU4500A1YJ
