Categories	Capacitors / Film Capacitors
Datasheet	C4AE Series Datasheet
Standard Package	58
Manufacturer	KEMET
Series	C4AE
Packaging	Bulk
Part Status	Active
Capacitance	15µF
Tolerance	±5%
Voltage Rating - AC	-
Voltage Rating - DC	700V
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	6.3 mOhms
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.634" L x 0.787" W (41.50mm x 20.00mm)
Height - Seated (Max)	1.583" (40.20mm)
Termination	PC Pins
Lead Spacing	1.476" (37.50mm)
Applications	DC Link, DC Filtering; High Frequency, Switching
Ratings	-
Features	-

C4AEJBW5150A3FJ	KEMET, 15µF Film Capacitor 700V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEGBW6100A3NJ	KEMET, 100µF Film Capacitor 450V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEHBW5750A3NJ	KEMET, 75µF Film Capacitor 600V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEQBW5200A3MJ	KEMET, 20µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEHBU4330A1WJ	KEMET, 3.3µF Film Capacitor 600V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEHBU5150A12J	KEMET, 15µF Film Capacitor 600V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEGBW5500A3LJ	KEMET, 50µF Film Capacitor 450V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEQBU4330A11J	KEMET, 3.3µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, C4AE	View
C4AEHBW5400A3LJ	KEMET, 40µF Film Capacitor 600V Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEQBW5250A3NJ	KEMET, 25µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial - 4 Leads, C4AE	View
C4AEJBU4500A1YJ	KEMET, 5µF Film Capacitor 700V Polypropylene (PP), Metallized Radial, C4AE	View
C4AEGBW6100H3NJ	KEMET, 100µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, C4AE	View

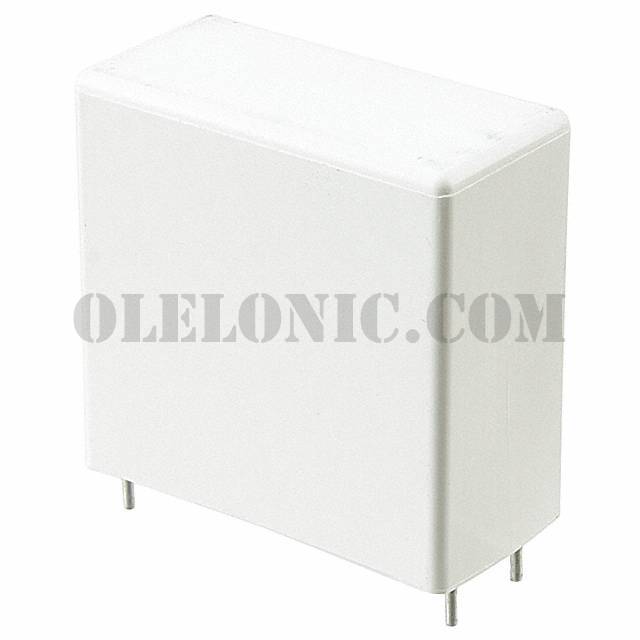

C4AEJBW5150A3FJ

Part NumberC4AEJBW5150A3FJ
