Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	BSM180C12P2E202 Datasheet
Standard Package	4
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Tray
Part Status	Active
FET Type	N-Channel
Technology	SiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss)	1200V
Current - Continuous Drain (Id) @ 25°C	204A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	4V @ 35.2mA
Vgs (Max)	+22V, -6V
Input Capacitance (Ciss) (Max) @ Vds	20000pF @ 10V
FET Feature	-
Power Dissipation (Max)	1360W (Tc)
Operating Temperature	175°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	Module
Package / Case	Module

SCT2280KEC	Rohm Semiconductor, N-Channel 1200V 14A (Tc) 108W (Tc) Through Hole TO-247,	View
BSM400C12P3G202	Rohm Semiconductor, N-Channel 1200V 400A (Tc) 1570W (Tc) Chassis Mount Module,	View
E3M0120090D	Cree/Wolfspeed, N-Channel 900V 23A (Tc) 97W (Tc) Through Hole TO-247-3, Automotive, AEC-Q101, E	View
SCT20N120	STMicroelectronics, N-Channel 1200V 20A (Tc) 175W (Tc) Through Hole HiP247™,	View
SCT2080KEC	Rohm Semiconductor, N-Channel 1200V 40A (Tc) 262W (Tc) Through Hole TO-247,	View
SCT3060ALGC11	Rohm Semiconductor, N-Channel 650V 39A (Tc) 165W (Tc) Through Hole TO-247N,	View
NVHL080N120SC1	ON Semiconductor, N-Channel 1200V 44A (Tc) 348W (Tc) Through Hole TO-247-3, Automotive, AEC-Q101	View
SCT3030ALHRC11	Rohm Semiconductor, N-Channel 650V 70A (Tc) 262W Through Hole TO-247N, Automotive, AEC-Q101	View
SCT3160KLHRC11	Rohm Semiconductor, N-Channel 1200V 17A (Tc) 103W Through Hole TO-247N, Automotive, AEC-Q101	View
SCT3080ALHRC11	Rohm Semiconductor, N-Channel 650V 30A (Tc) 134W Through Hole TO-247N, Automotive, AEC-Q101	View
SCT2120AFC	Rohm Semiconductor, N-Channel 650V 29A (Tc) 165W (Tc) Through Hole TO-220AB,	View
C2M1000170D	Cree/Wolfspeed, N-Channel 1700V 4.9A (Tc) 69W (Tc) Through Hole TO-247-3, Z-FET™	View

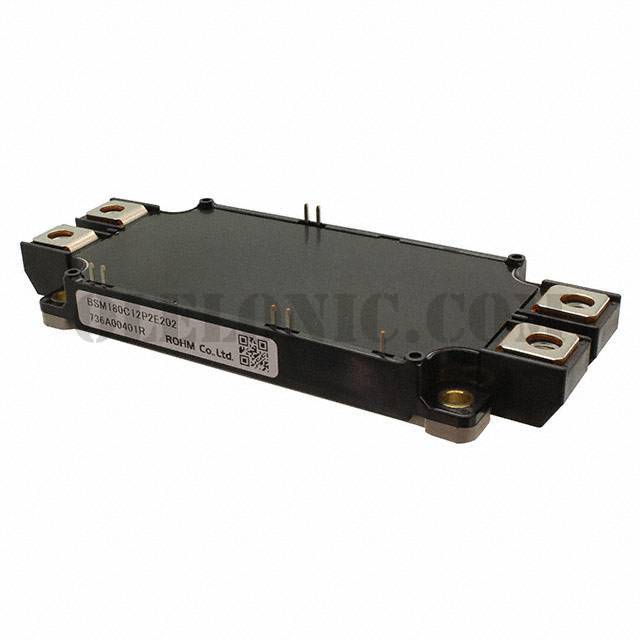

BSM180C12P2E202
