Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	BFU725F
Standard Package	3000
Manufacturer	NXP USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	2.8V
Frequency - Transition	55GHz
Noise Figure (dB Typ @ f)	0.42dB ~ 1.1dB @ 1.5GHz ~ 12GHz
Gain	10dB ~ 24dB
Power - Max	136mW
DC Current Gain (hFE) (Min) @ Ic, Vce	160 @ 10mA, 2V
Current - Collector (Ic) (Max)	40mA
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount

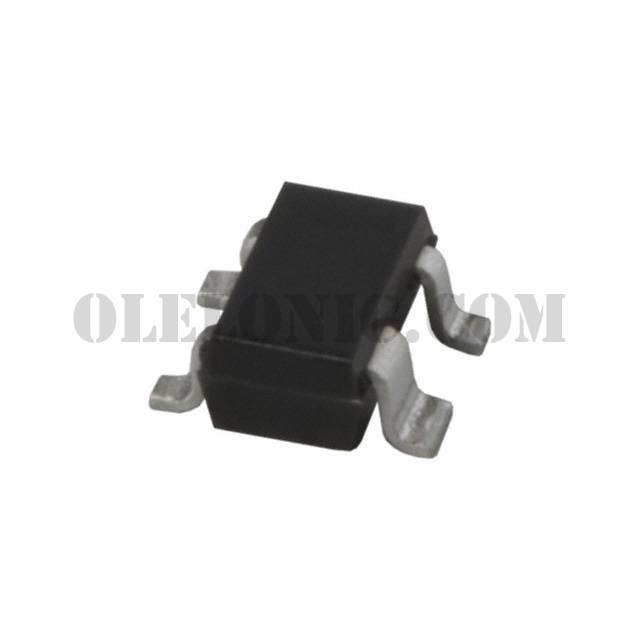

Package / Case	SOT-343 Reverse Pinning
Supplier Device Package	4-SO
Base Part Number	BFU725
